Description

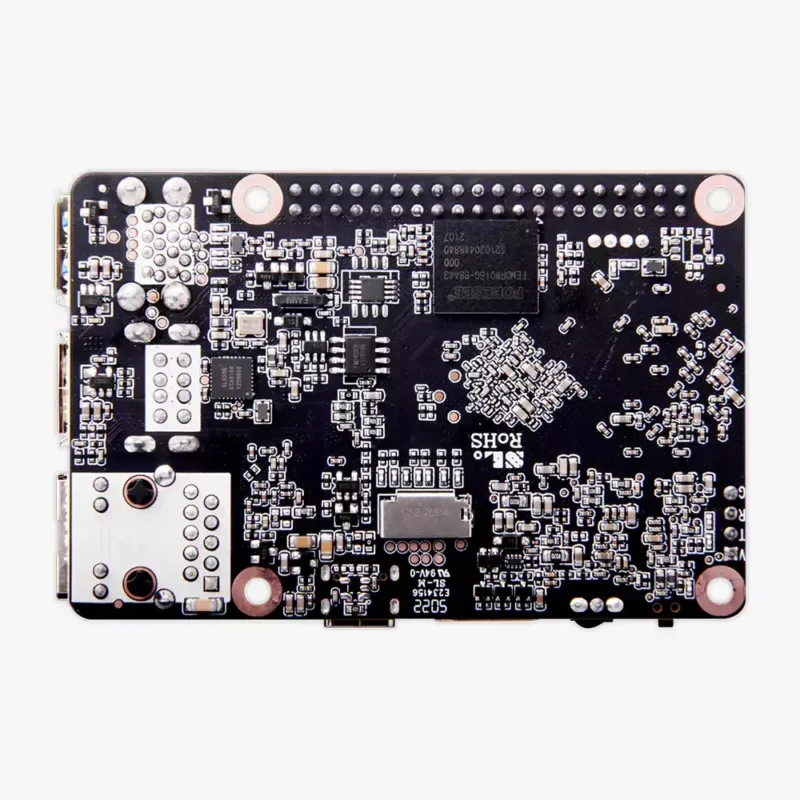

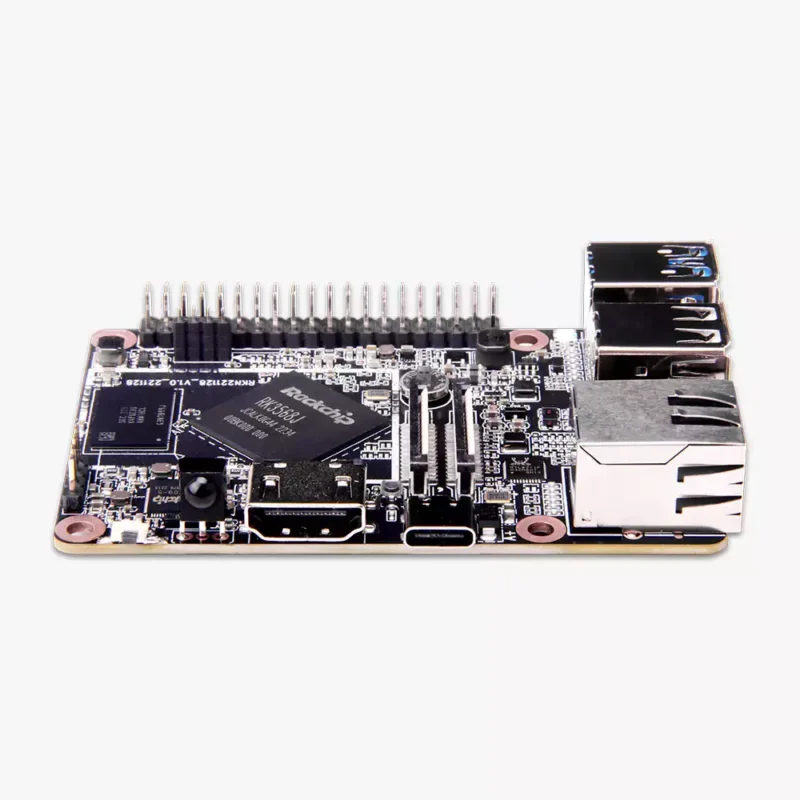

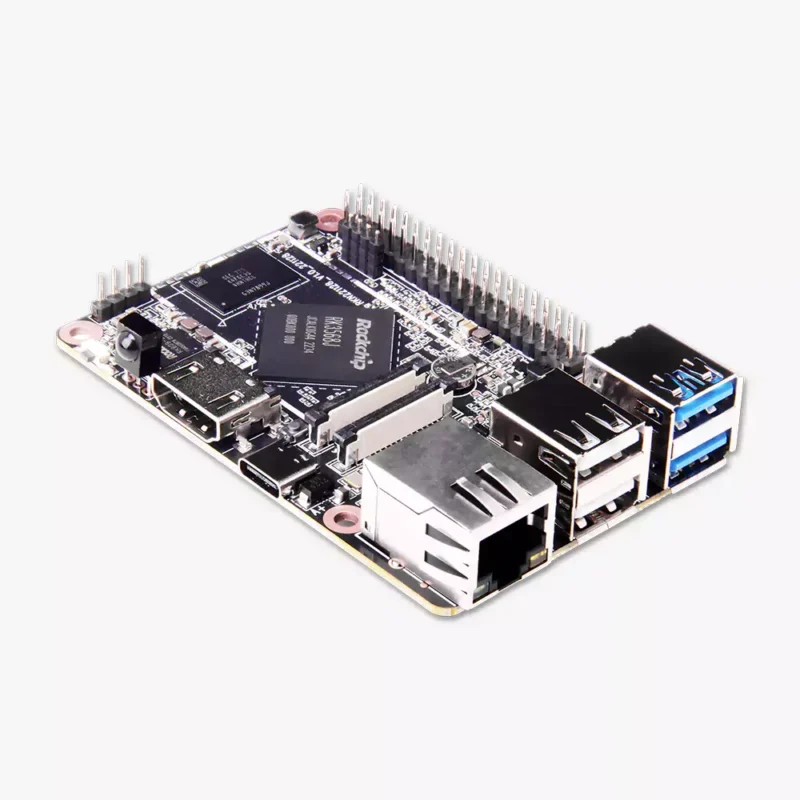

Intelligent Edge Computer with RK3568J
Geniatech XPI-3568 is an intelligent edge computer equipped with RK3568J quad-core 64-bit industrial-grade processor, built-in 1T NPU, HDMI display supports up to 4KP60 resolutions, XPI-3568 supports almost full-format H.264/H.265 decoder by 4K@60fps, also support H.264/H.265 encoder by 1080p@60fps, high-quality JPEG encoder/decoder. Up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 4.0, Gigabit Ethernet, USB 3.0 and USB 2.0, making it ideal for AI, machine learning, and multimedia applications.
![xpi-3568-io](https://shop.geniatech.com/wp-content/uploads/2023/08/xpi-3568-io.webp)
Compatibility and Extensibility
40 Pin header enables hardware re-use by maintaining compatible alternate pin functions like I2S, I2C, PWM, UART, and GPIO. Form-factor compatible with Raspberry Pi 4 for easy migration.
![](https://www.geniatech.com/wp-content/uploads/2023/06/XPI3566_05.png)
Pin | Definition | Pin | Definition |
1 | VDDIO_3.3V | 2 | VCC5V0_SYS |
3 | I2C5_SDA_M0/GPIO3_B3_D | 4 | VCC5V0_SYS |
5 | I2C5_SCL_M0/GPIO3_B4_D | 6 | GND |
7 | I2S1_MCLK_M1/GPIO3_C6_D | 8 | UART1_TX_M1/GPIO3_D6_D |
9 | GND | 10 | UART1_RX_M1/GPIO3_D7_D |
11 | SPI3 _ CLK _ M0/GPIO4_B3_D | 12 | I2S1 _ SCLK _ TX _ M1/GPIO3_C7_D |
13 | SPI3 _ MOSI _ M0/GPIO4_B2_D | 14 | GND |
15 | SPI3 _ MISO _ M0/GPIO4_B0_D | 16 | UART1_CTSn_M1/GPIO4_C1_D |
17 | VDDIO_3.3V | 18 | UART1_RTSn_M1/GPIO4_B6_D |
19 | SPI2_MOSI_M1/GPIO2_D6_D | 20 | GND |
21 | SPI2_MISO_M1/GPIO2_D7_D | 22 | GPIO3_C4_PWM |
23 | SPI2_CLK_M1/GPIO3_A0_D | 24 | SPI2_CS0 _M1/GPIO2_D5_D |
25 | GND | 26 | SPI2_CS1_M1/GPIO2_D4_D |
27 | I2C2_SDA_M1/GPIO4_B4_D | 28 | I2C2_SCL_M1/GPIO4_B5_D |
29 | SPI3_CS0_M0/GPIO4_A6_D | 30 | GND |
31 | SPI3_CS1_M0/GPIO4_A7_D | 32 | UART4_TX_M1_PWM/GPIO3_B2_D |
33 | UART4_RX_M1_PWM/GPIO3_B1_D | 34 | GND |
35 | I2S1_LRCK_TX_M1/GPIO3_D0_D | 36 | UART3_RX_M1/GPIO3_C0_D |
37 | UART3_TX_M1/GPIO3_B7_D | 38 | I2S1_SDI0_M1/GPIO3_D2_D |
39 | GND | 40 | I2S1_SDO0_M1/GPIO3_D1_D |
Specifications
Chipset | Rockchip RK3568J | |
Software | Debian10/ Android11 / Raspbian OS | |
Processor | CPU | Quad-core Cortex-A55 up to 1.8GHz |
GPU | Mali-G52-2EE | |
DDR | 2G(1G/4G/8G Optional) | |
EMMC FLASH | 16GB(8G/32G/64GB/128GB Optional) | |
Network | Ethernet | RJ45, 1000M |
WiFi | 2.4G/5G Dual Band WiFi | |
Bluetooth | BT4.0 | |
Interface | TF Card Slot | TF card *1(max. 64GB) |
HDMI | HDMI out*1 | |
USB Host | USB HOST 3.0 * 1,USB Host 2.0*2,USB OTG 2.0*1 | |
DC IN | Power IN*1 (TYPE-C, 5V / 3A) | |
Extension GPIO | GPIO*40 | |
Display | MIPI-DSI, MIPI-CSI, IR | |
Codec | Video Decoder | 4096x2304@60fps video decode (H.265,H.264,VP9/VP8,VC-1, MPEG-1/2/4) |
Video Encoder | • H.264/AVC BP/MP/HP@level4.2,up to 1920x1080@60fps • H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE) • Support YUV/RGB video source with rotation and mirror |
|
JPEG Decoder | • Decoder size is from 48x48 to 65536x65536 • Support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444 • Support 1920x1080@120fps • Support MJPEG |
|
JPEG Encoder | • Baseline Non-progressive • up to 8192x8192 • up to 90 million pixels per second |
|
Weight | 45 g | |
Dimensions | 85 mm * 56 mm * 1.6 mm | |
Operating Temp | 0°C to 60°C | |
Accessory | Power Adapter, WIFI Module |
