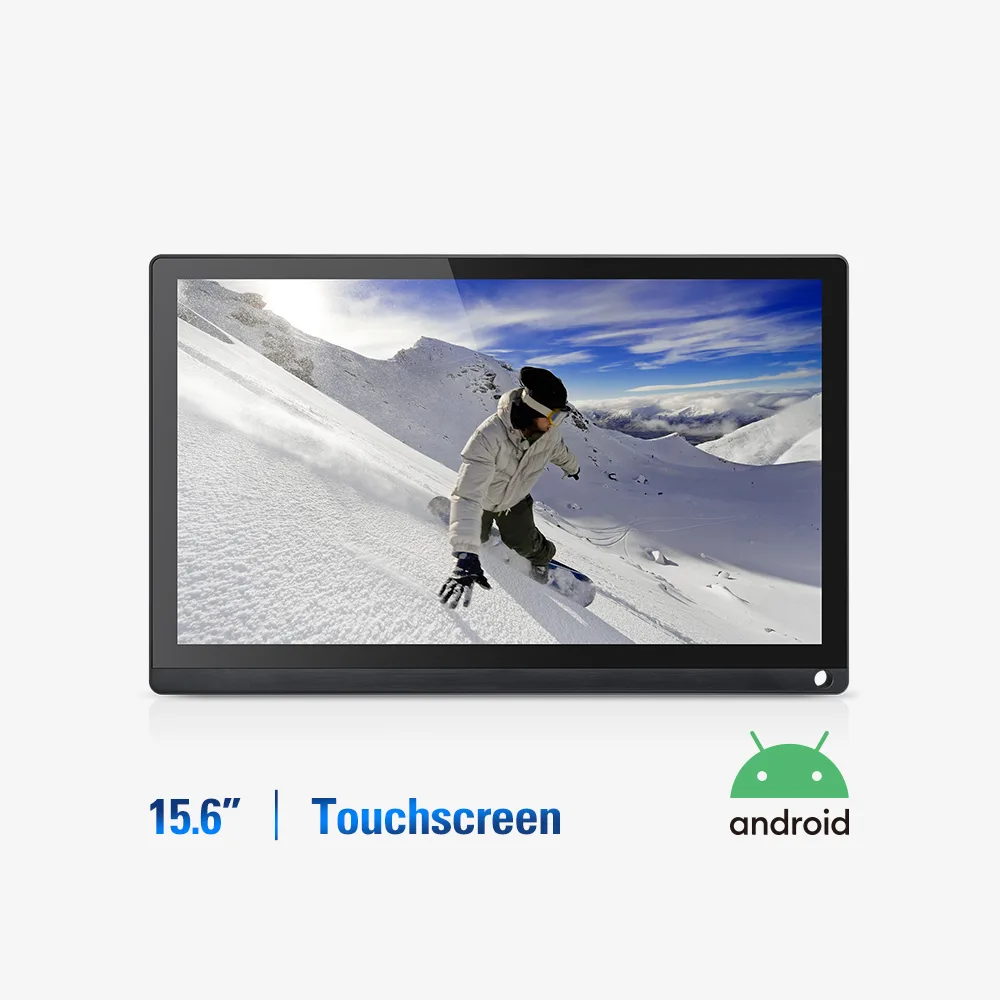

15.6″ Android Industrial Panel PC (RK3566)


SKU: TPC1560K4 Category: Tag:


Our Industrial tablet combines all the advantages of the Android platform with the advantages of an Industrial Panel PC in a fanless design. More and more industrial automation users are realizing the benefits of Android-based panel PCs.

Geniatech Android industrial panel PC is a lower cost alternative to traditional Windows panel PCs while offering more features. Geniatech TPC1560K4 is equipped with 15.6″ touchscreen, offers 10-point capacitive, supports Android 11, Built-in WiFi, BT & GbE, USB, HDMI, etc. This Android Panel PC is powered by an ARM Cortex processor and is built with industrial-grade materials.

Key Highlights

  • 15.6″ P-Cap Touch Screen Panel
  • ARM Cortex A55 Quad Core Processor
  • Onboard LPDDR4 2GB Memory
  • Onboard 16GB eMMC Flash
  • Fanless Design

A variety of interfaces

Equipped with various interfaces such as GbE ports, USB3.0, USB2.0, HDMI2.0 output, 4G LTE optional.  it can be easily connected to different industrial equipment to meet a variety of industrial needs.

Multi-operating System

Support Android 11 and Linux system

Capacitive Screen

10 points touch, short response time

MDM Optional

Can remotely wake up, restart, standby, etc.


Primary Components
Processor Rockchip RK3566 Quad-core ARM Cortex-A55
Memory Onboard 2GB DDR (1G/4G/8G Optional)
Onboard 16GB eMMC Flash (8G/32G/64G Optional)
Operation System Android 11
Linux-Debian optional
Screen Size 15.6" LCD
Screen type Touchscreen – 10 Point Capacitive
Resolution 1920*1080
Ratio 16:9
Brightness 220cd/m2
Viewing Angle 45°
Contrast 500:1

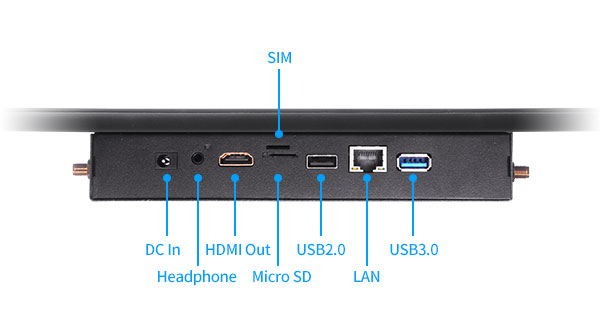

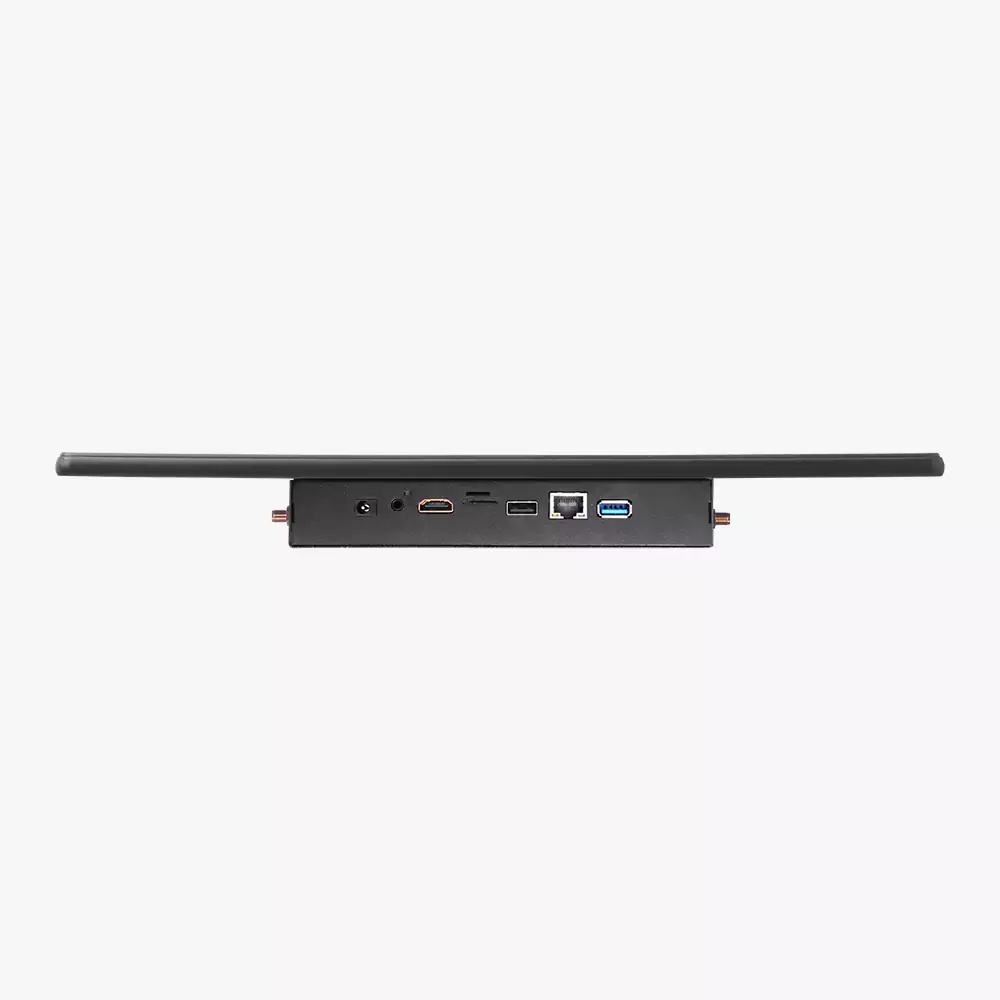

External I/O ports & Connectivity
USB 1x USB 3.0, 1x USB 2.0
HDMI 1x HDMI output
Network options • 1*Gigabit Ethernet (10/100/1000M)
• IEEE 802.11 ac (2.4G & 5.8G Dual Band WiFi)
• Bluetooth 4.0
• Optional 4G LTE
Speakers 2x 3W
Camera Front 2M / 5M pixels optional
Internal Interface • USB2.0*3
• UART /RS-232 *3
• RS-485/UART* 1
• CAN* l
• PDM *1
• GPIO* 6
Housing type Metal Frame, support Versa mount and customized wall mount
Size Dimension: 388*245*53.6(mm)
Active Area: 344.16*193.59(mm)
Usage 24/7
Cooling Solution Metal – Fanless with Heatsink
Power Adapter DC 4.5V ~18V
