Low-profile Digital Signage Motherboard with multiple video interfaces such as HDMI, LVDS, eDP, and MIPI DSI

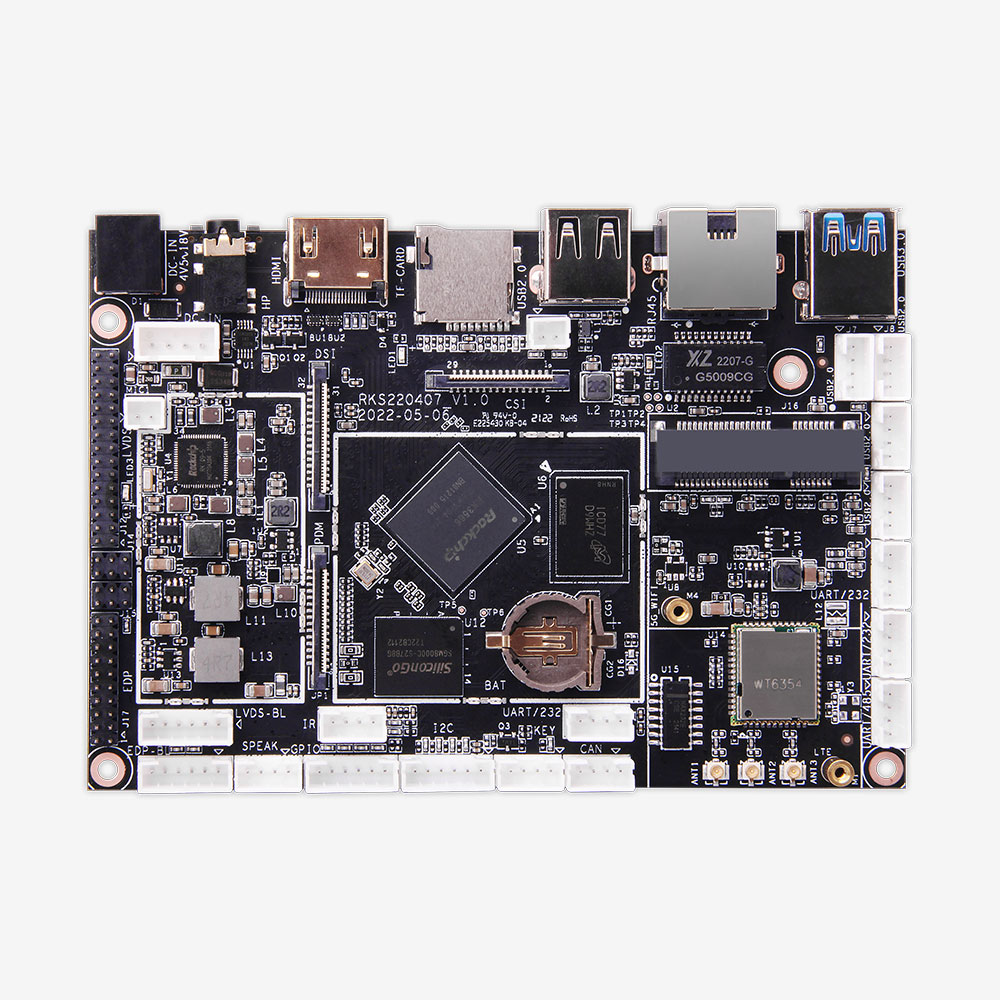

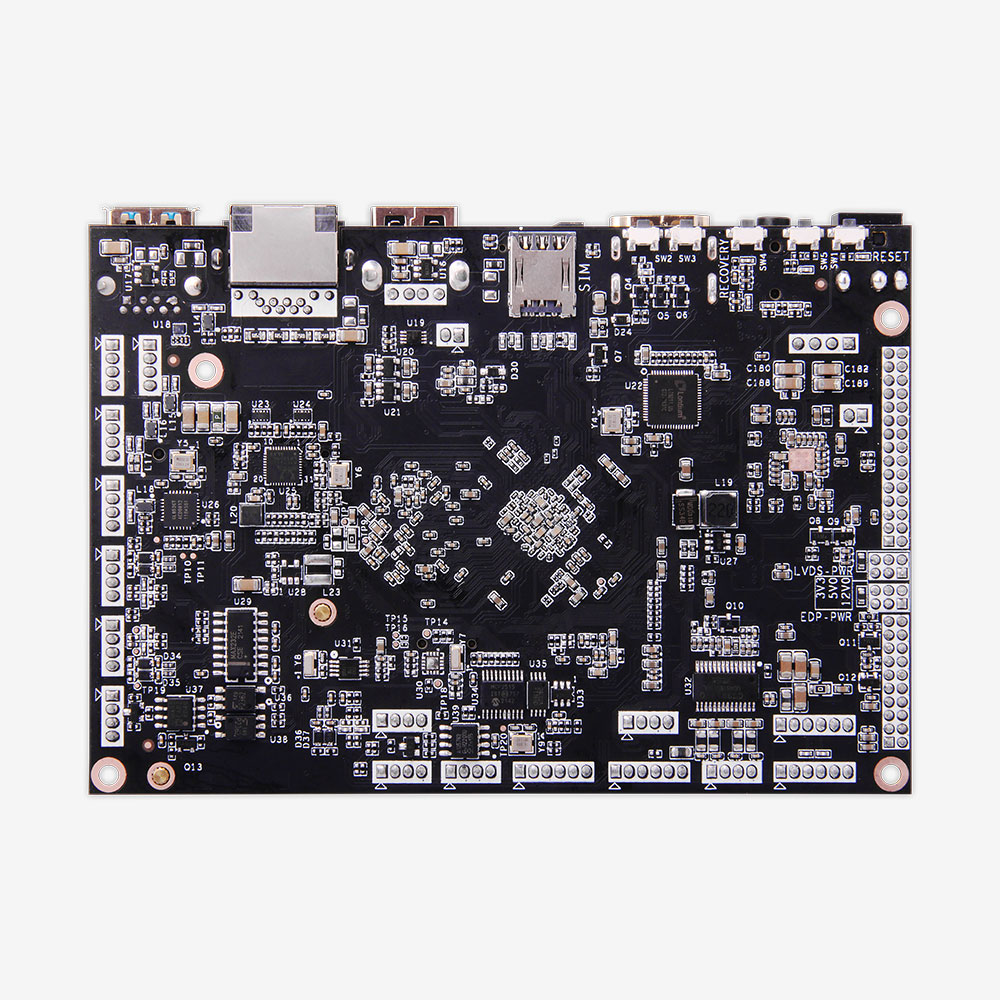

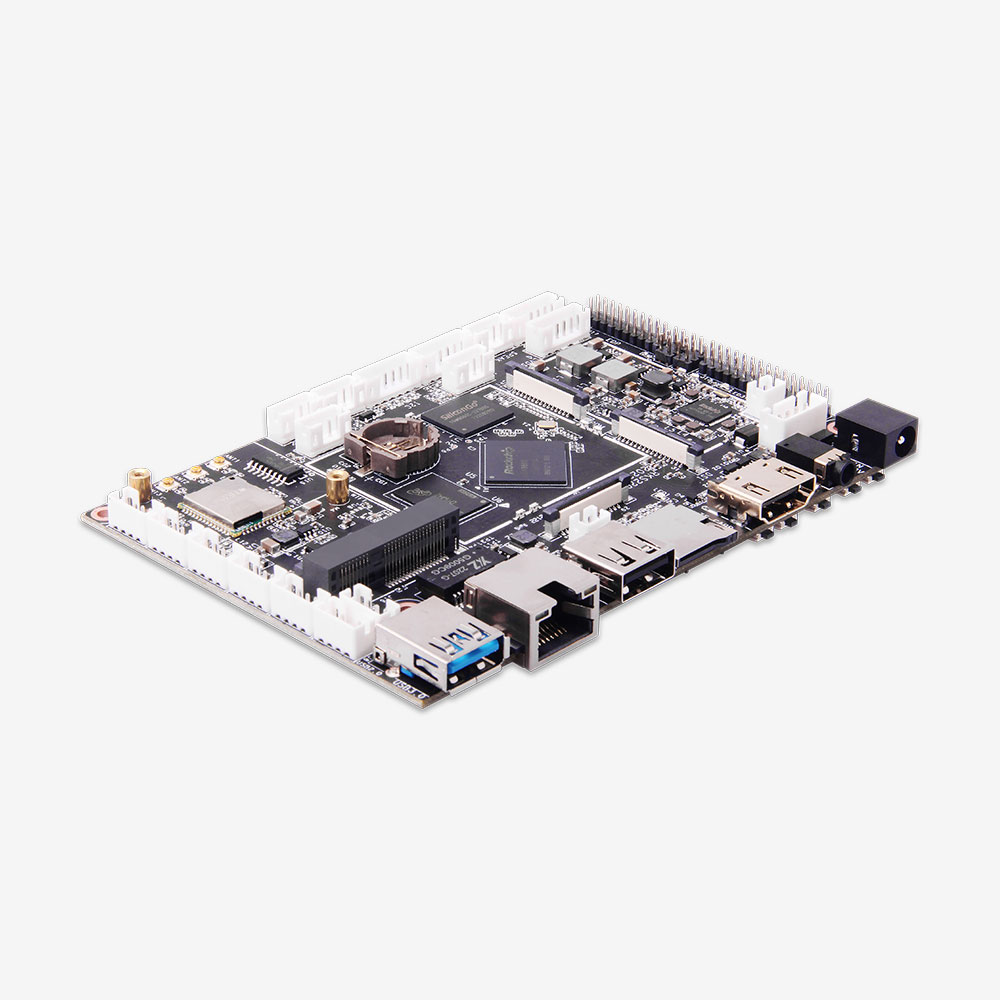

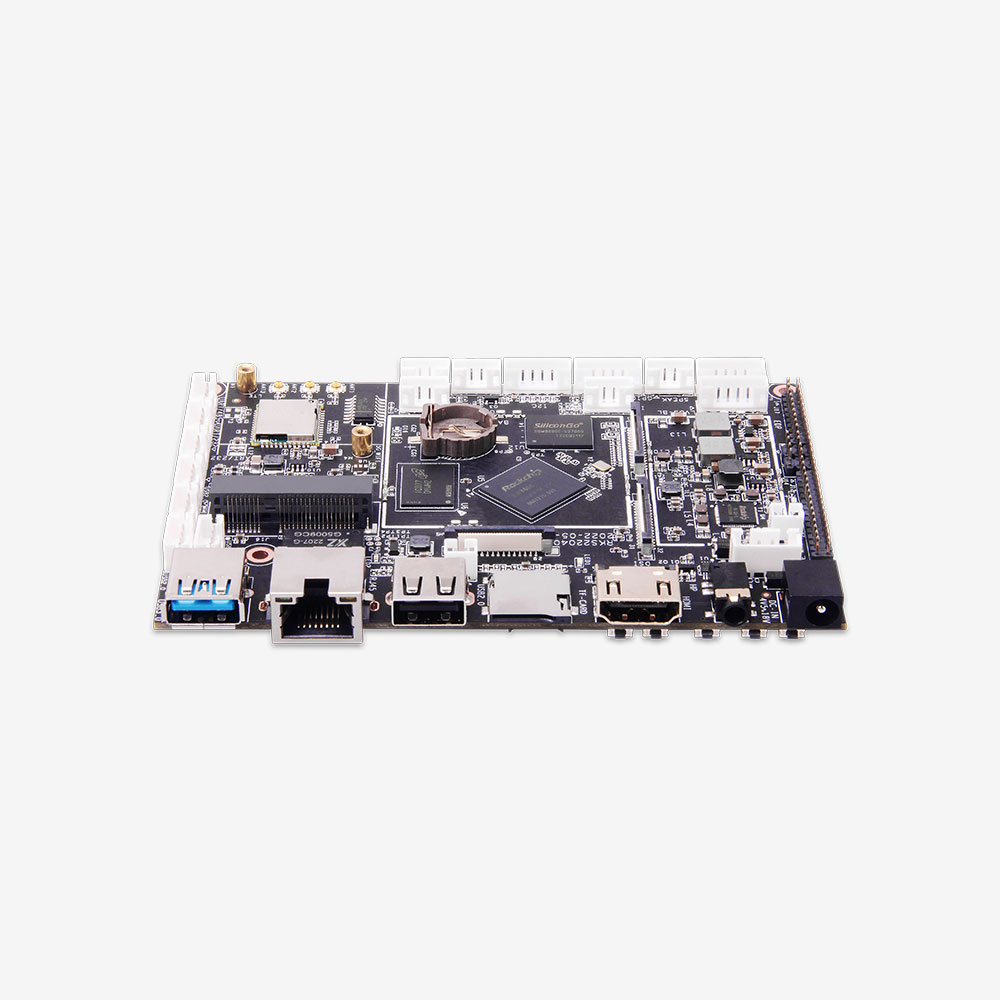

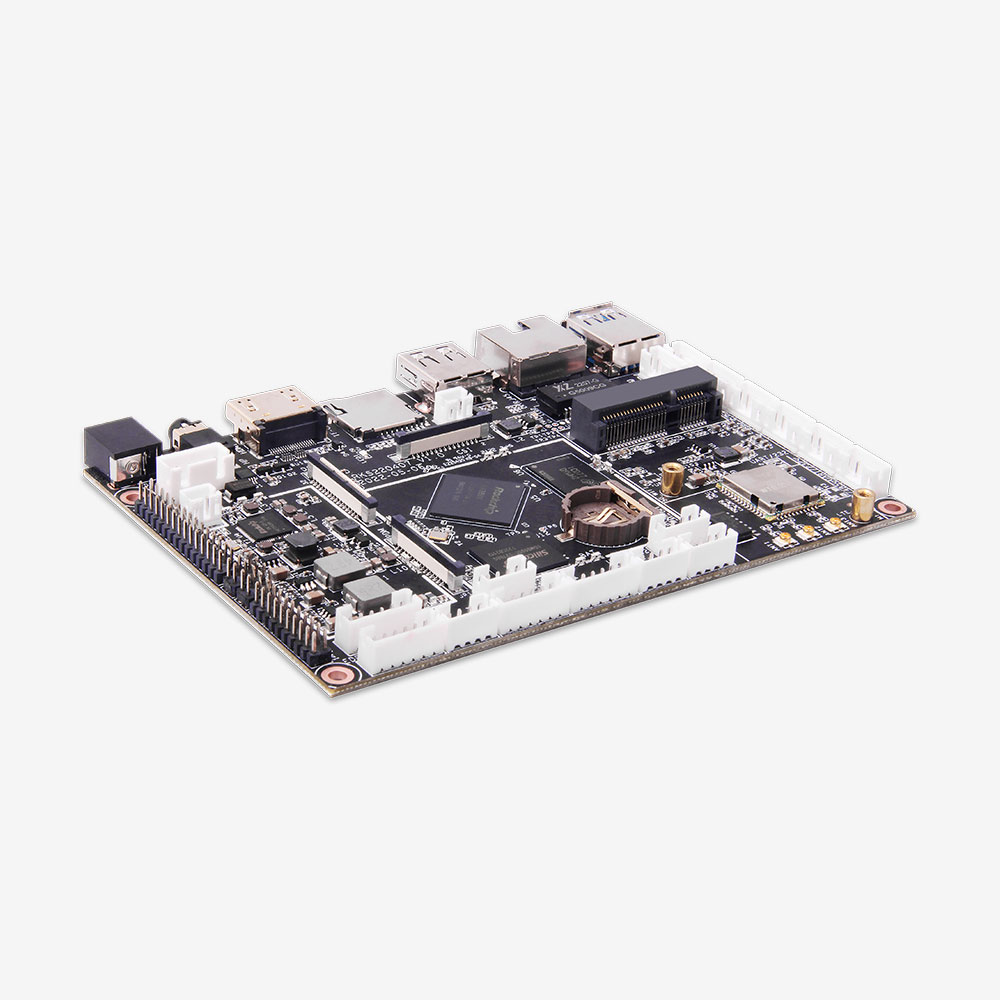

Geniatech DS-3566 is a low power and high-performance intelligent display SBC which is specially developed for commercial display industry. It adopts Rockchip RK3566 processor, and supports HDMI 4K display output. DS-3566 also features LVDS、eDP、MIPI-DSI display interfaces and can access internet through 4G, WiFi and wired network. It supports Linux Debian10/Android 11 system. With open system architecture design, we provide technical datasheet for your secondary development. It is the best choice for commercial display advertising machine, touch control machine, conference tablet, cash register and self-service terminal.
| Model | DS3566 |
| Display | 1 x HDMI OUT 1 x MIPI DSI 1 x MIPI CSI 1 x LVDS 1 x EDP |
| USB | 1 x USB3.0 1 x USB2.0 |
| Other Interface | Mic In/SPI/I2C/Speaker/GPIO/CAN/RS-232/RS-485(Optional) |
| Connectivity | WIFI/802.11 a/b/g/n/ac Bluetooth 5.0 1 x Gigabit Ethernet (RJ45 10/100/1000M) Optional 3G/4G/LTE Support |
| Dimension | 124mm*85mm |
| System | Debian10/ Android11 |
| Processor | Rockchip RK3566 |
| CPU | Quad-core ARM Cortex-A55 1.8GHz |
| GPU | ARM G52 2EE Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
| Memory | 2GB （4GB/8GB optional） 16GB eMMC（8~128GB optional） |
| Operating temperature | 0~60℃ |
| Power | DC 5V/2A |
| Accessory | Wifi antenna |

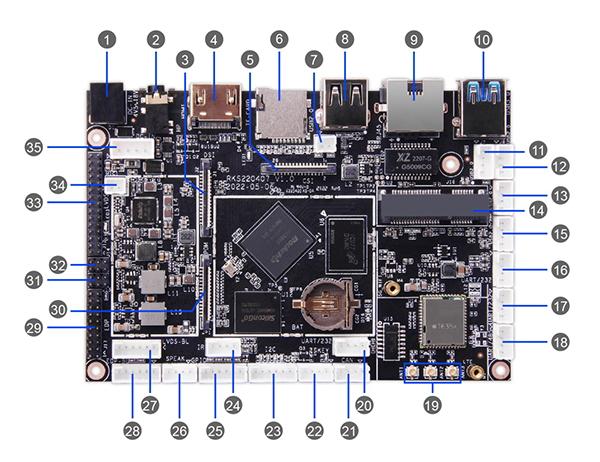

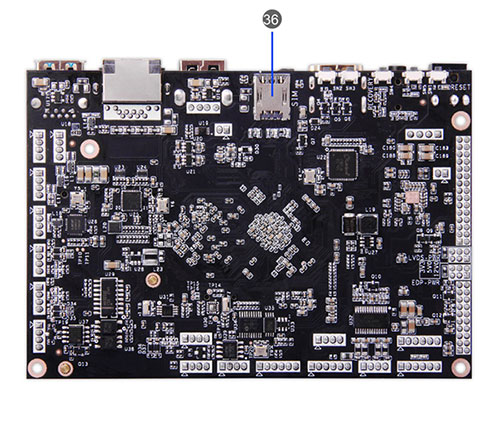

| No. | Name | Description |
| 1 | DC IN | 4.5V~18V input |
| 2 | 3.5mm Slot | Headphone * 1 |
| 3 | FPC Slot | MIPI DSI *1 |
| 4 | HDMI OUT | *1 |
| 5 | FPC Slot | MIPI CSI*1 |
| 6 | TF Card Slot | *1 |
| 7 | PH2.0 Slot | 2 Pin, GPIO * 2 |
| 8 | USB2.0 Slot | *1 |
| 9 | RJ45 | *1 (1000M Ethernet) |
| 10 | USB3.0 Slot | *1 |
| 11 | PH2.0 Slot | 4 Pin, USB2.0 *3 |
| 12 | PH2.0 Slot | |
| 13 | PH2.0 Slot | |
| 14 | Mini PCIe | *1, for 4G LTE |
| 15 | PH2.0 Slot | 4 Pin, USB2.0 * 1 |
| 16 | PH2.0 Slot | 4 Pin, UART/RS-232*1 |
| 17 | PH2.0 Slot | 4 Pin, UART/RS-232*1 |
| 18 | PH2.0 Slot | 4 Pin, UART/RS-485*1 |
| 19 | IPEX | *3，WIFI&BT Antenna |
| 20 | PH2.0 Slot | 4 Pin, UART/RS-232*1 |
| 21 | PH2.0 Slot | 4 Pin, CAN*1 |
| 22 | PH2.0 Slot | 4 Pin, External button board |
| 23 | PH2.0 Slot | 4 Pin,I2C*1 |
| 24 | PH2.0 Slot | 4 Pin, External IR board |
| 25 | PH2.0 Slot | 6 Pin, GPIO*6 |
| 26 | PH2.0 Slot | 4 Pin, Speaker*1(Max to 2*10W) |
| 27 | PH2.0 Slot | 6 Pin, LVDS Panel backlight |
| 28 | PH2.0 Slot | 6 Pin, eDPPanel backlight |
| 29 | eDP Panel Slot | *1 |
| 30 | FPC Slot | PDM*1 |
| 31 | eDP Panel voltage switch | 3.3V/5V/12V |
| 32 | LVDS Panel voltage switch | 3.3V/5V/12V |
| 33 | LVDS Panel Slot | *1 |
| 34 | PH2.0 Slot | 2 Pin, MIC IN * 1 |
| 35 | PH2.0 Slot | 4 Pin, DC IN*1(4.5V~18V input) |
| 36 | SIM Card Slot | *1 |
