Robust and Reliable Android Digital Signage Player

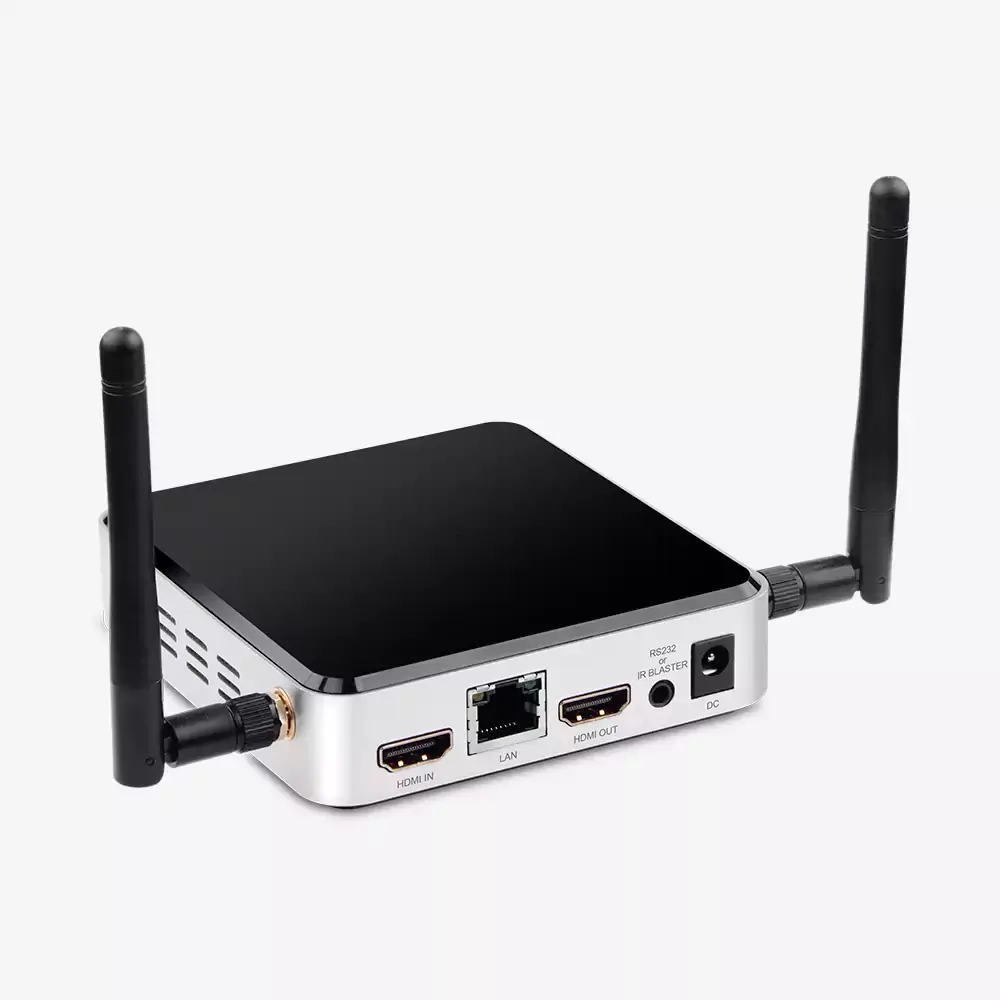

Geniatech APC390K is an Android digital signage media player, which is equipped with Rockchip 64-bit high performance and low power consumption RK3566 processor. It has powerful video hardware decoding capabilities and multiples interfaces, and supports wired and wireless a variety of flexible communication that can be applied to AIOT devices, commercial display, digital signage, smart home, video conferencing, smart medical…
Turn Any Screen Into a Beautiful Digital Signage Display at Ease.
APC390K has a 4KP60 HDMI output interface and a 4KP30 HDMI input interface, which supports HDMI standard protocol devices. Dual-screen content can be switched in full screen or displayed in picture-in-picture (PIP)，in addition, both HDMI input and output support encrypted video playback (HDCP 1.4/2.2 KEY);
Support Multiple Communication Protocols
Support Gigabit Ethernet, WiFi (2.4G/5.8G) and LTE (4G) multiple flexible communication modes
Specification
| Processor | Rockship RK3566 CPU: Quad core ARM Cortex-A55 GPU: ARM Mali-G52 GPU NPU: Supports INT8/INT16/FP16/BFP16 MAC hybrid operation |
|---|---|
| OS Support | Android 11 (Linux optional) |
| Max Resolution | 4096 x 2160 (60Hz) |
| Memory | 2GB（4GB/8GB optional） |
| Storage | 8GB eMMC（8~128GB optional） 1 x Micro SD Slot (Max. 32GB) |
| Network | 1 x Gigabit LAN (RJ45) |
| Wireless | WIFI: IEEE 802.11 AC 2.4G /5.8G dual band BT: Bluetooth4.2 Cellular: SIM card SLOT for LTE/4G Cellular connection (no SIM card provided) IoT Gateway: Support multiple optional wireless protocols: Z-Wave / Zgibee / LoRa / LTE Cat 1 / GPS / BLE |
| USB | USB3.0 x1, USB2.0 x1 |
| Video | 1x HDMI 2.0 input (Support 4K@30fps for digital signage, surveillance, recording) 1x HDMI 2.0 output (Support 4K@60fps, HDR10) |
| Audio | 1x HDMI 2.0 output |
| Other Feature | Picture In Picture (PIP), MDM (Mobile Device Management) |
| Power Adapter | DC 12V/1.5A |
| Dimension and Weight | Size:
106*100*25mm Net Weight: 258g |
| Package Contents | 1 x APC390K, 1 X PSU, 1 X KR20 Remote, 1 X HDMI cable |
