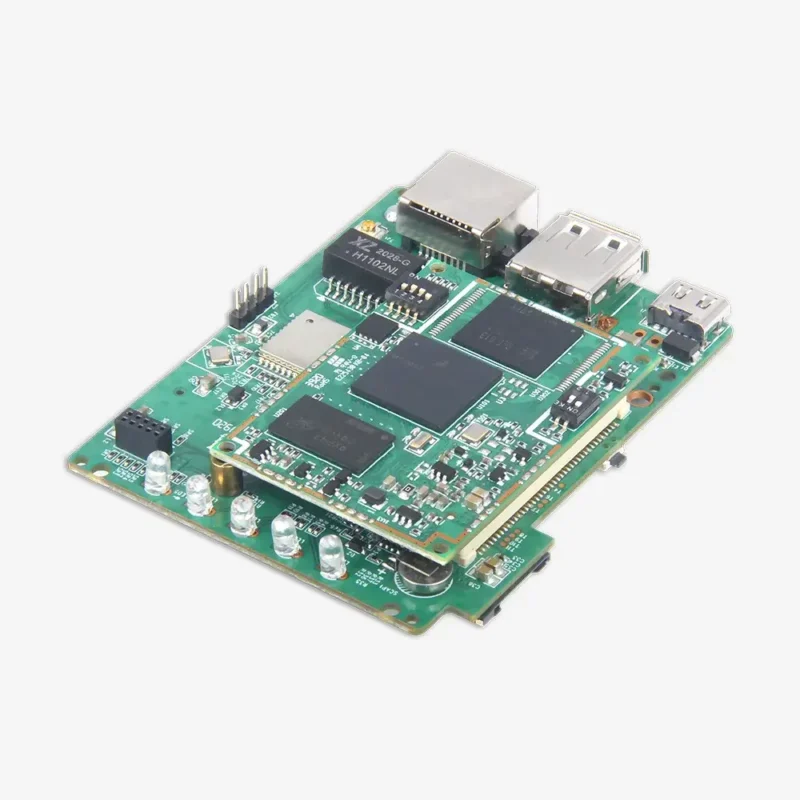

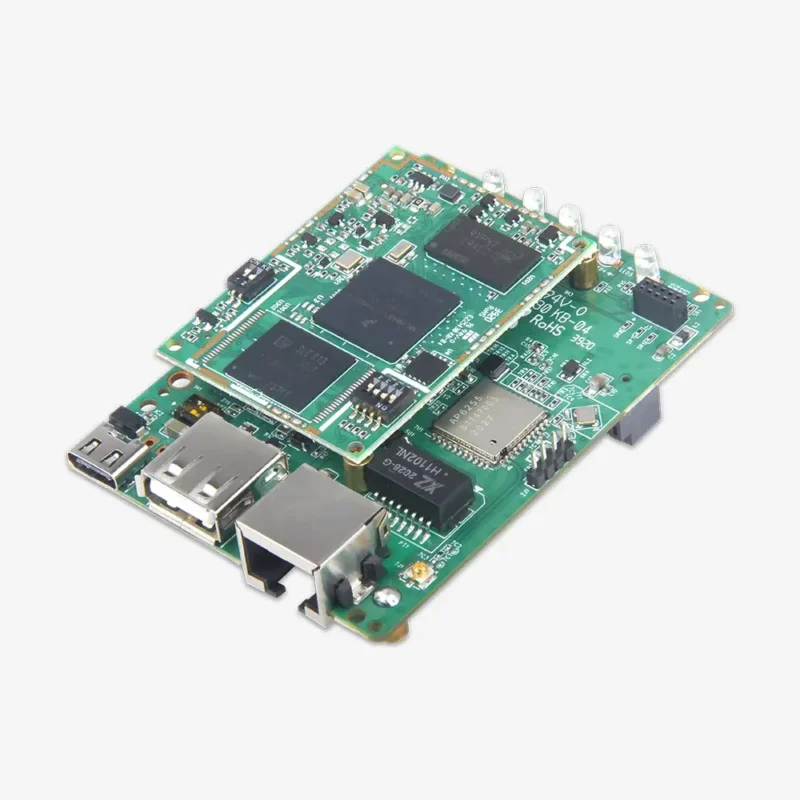

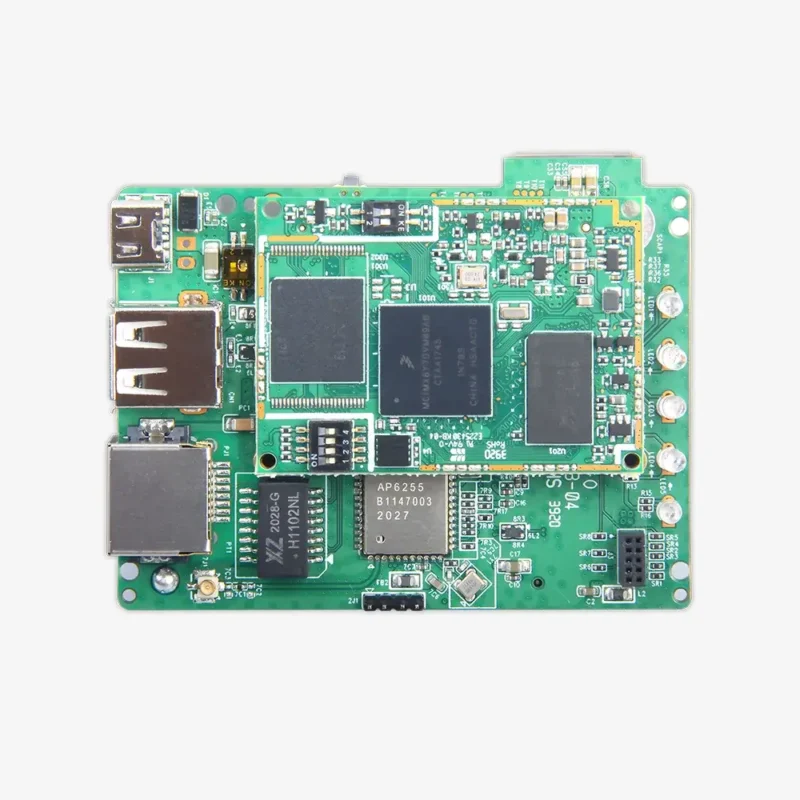

DB360 (i.MX6ULL)

$69.00

SKU: DB360 Category: Tag:


Description

CPUNXP i.MX6ULL Cortex-A7
CPU Frequency792 MHz(up to 900 MHz, 128 KB L2 cache)
900 MHz(optional)
Internal Memory1G DDR (512M optional)
16-bit LP-DDR2, DDR3/DDR3L
Internal Storage4GB-8GB eMMC
8/16-bit Parallel NOR FLASH / PSRAM
Dual-channel Quad-SPI NOR FLASH
8-bit Raw NAND FLASH with 40-bit ECC
OSLinux(Yacto/Ubuntu 16.04)
Built-in 2G/3G/4GOptional
LTE for EU
LTE for AU
LTE for US
Built-in WiFi802.11 b/g/n/ac 2.4GHz/5GHz
Ethernet port RJ45 10/100Mbps
USB InterfaceUSB-A 2.0 x 1(Optional);
Type C for Power Supply
SIM Slot Standard
BT 5.0/BLE Optional
ZigBee 3.0 OptionalOptional
Z-Wave OptionalOptional
LoRa OptionalOptional
LEDs GSM, WAN, IoT, Status, Wi-Fi
Industrial grade -40 to +105
Size (mm) 74*55
Net Weight (g) 35
Power Plug TypesUS – Type A(America), EU – Type F(France)/E(Europe)/ G(England)

Additional information

Weight 1 kg
CPU

NXP

OS

Linux
