Additional information
| Weight | 1 kg |
|---|---|
| OS | Linux, Android, Windows 10 IoT core |
| Storage | 1G/8G, 2G/16G |
Highlights
▪ Compliant with 96Boards Open Hardware Design Specification IoT Edition(IE)
▪ Quad-core ARM® Cortex® A53 processor up to 1.2GHz
▪ Support system diversification: Linux based on Debian Windows 10 IoT core
▪ WLAN 802.11 b / g / n 2.4 GHz, Bluetooth 4.1, BT and WLAN antennas
▪ Wide operating temperature:
-- Commercial grade operating temperature: -20°C to +65°C
-- Industrial grade operating temperature: -40°C to +80°C(optional)
▪ Quad-core ARM® Cortex® A53 processor up to 1.2GHz
▪ Support system diversification: Linux based on Debian Windows 10 IoT core
▪ WLAN 802.11 b / g / n 2.4 GHz, Bluetooth 4.1, BT and WLAN antennas
▪ Wide operating temperature:
-- Commercial grade operating temperature: -20°C to +65°C
-- Industrial grade operating temperature: -40°C to +80°C(optional)
Ultra-high integration, ultra-small size

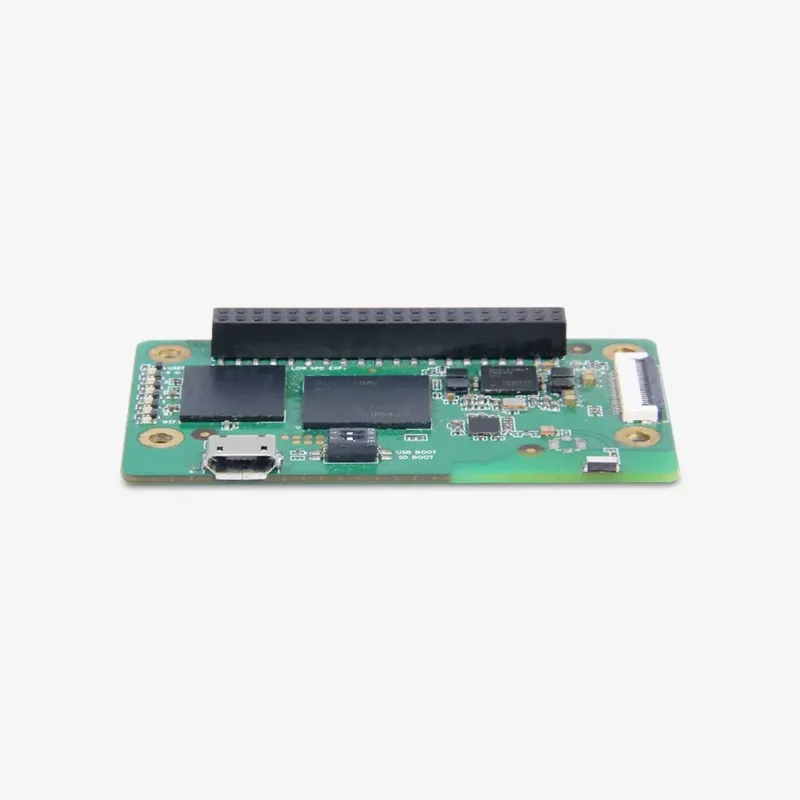

Geniatech’s Developer Board 4 IoT features Qualcomm Snapdragon 410 processor, a Quadcore ARM® Cortex™ A53 at up to 1.2GHz clockspeed per core, capable of 32-bit and 64-bit operation. It supports Linux and Windows 10 and offers advanced processing power, WLAN, Bluetooth, and GPS, all packed into a board the size of a credit card.It is designed to support feature-rich functionality, including multimedia,with the Adreno™ 306 GPU, integrated ISP with up to 13 MP camera support,and 1080p HD video playback and capture with H.264 (AVC).
Versatile board platform for NextGen embedded and IoT devices
Geniatech’s DB4 IoT conforms to the 96boards IE interface specification and is easily compatible with and extends various functional modules. It is widely used in various embedded fields and Internet of things. It can be the system board for signage box, hotel, hospitality, education and many more.
Application scenarios – IoT Healthcare – Use Real Time Information to make better decisions
Application scenarios – Smart home – Use Real Time Information
| Component Description | SOC | Qualcomm® Snapdragon™ 410E (APQ 8016E) |
|---|---|---|
| CPU | ARM Cortex-A53 microprocessor cores up to 1.2 GHz 64-bit processor | |
| GPU | Qualcomm® Adreno™ 306 GPU(up to 400 MHz 3D graphics accelerator) support for advanced APIs, including OpenGL ES 3.0, OpenCL, DirectX, and content security | |
| RAM | 1GB or 2GB LPDDR3 533MHz | |
| Storage | 8GB or 16GB eMMC 5.0 SD 3.0 (UHS-I) | |
| Hardware Characteristics | Wireless | 802.11 a/b/g/n, 2.4GHz |
| USB Interface | One USB 2.0 micro B (device mode only) | |
| Camera | Integrated ISP with support for image sensors up to 13MP | |
| Expansion connector | 1x Mezznine boards 40 pin Low-Speed connector • UART, SPI, I2S, I2C x2, GPIO x12, DC power One MIPI_CSI interface | |
| User Interface |
6 LED indicators • 4 – user controllable • 2 – for BT, WLAN and Ethernet activity | |
| System Software |
Linux based on Debian Windows 10 IoT core | |
| Other Specifications | Size | Dimensions: 35mm by 60mm (meeting 96Boards™ Consumer Edition standard) dimensions specifications. Operating Temp: -25°C to +85°C RoHS and Reach compliant |
| Power | +5V |
