Description

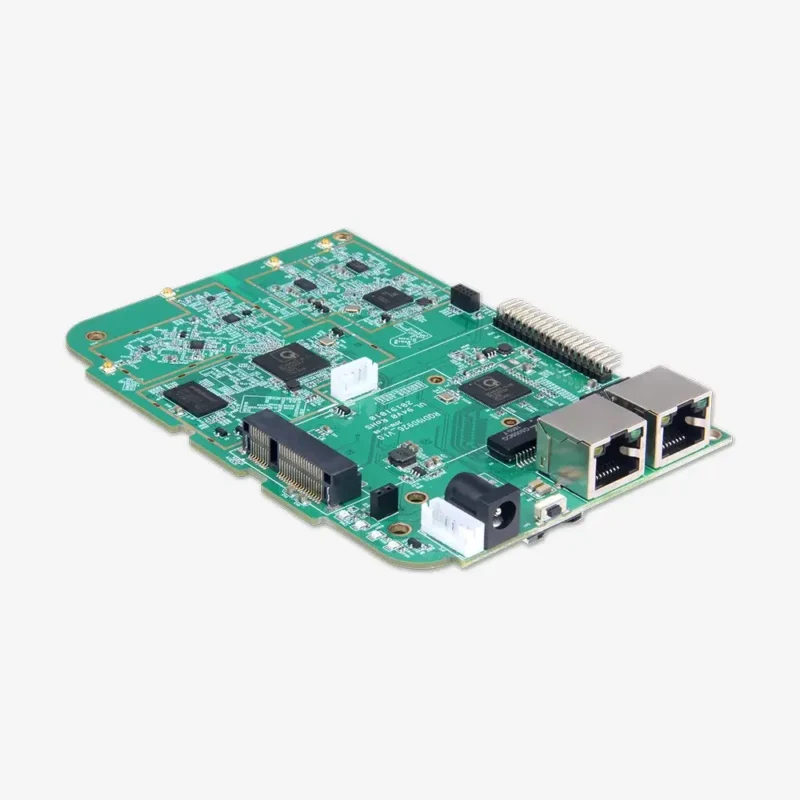

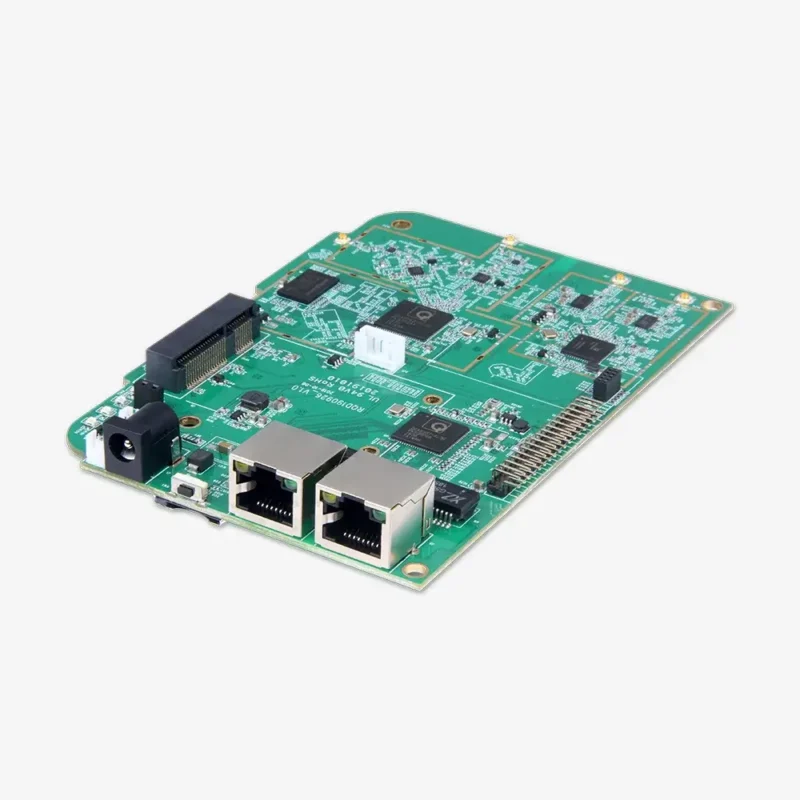

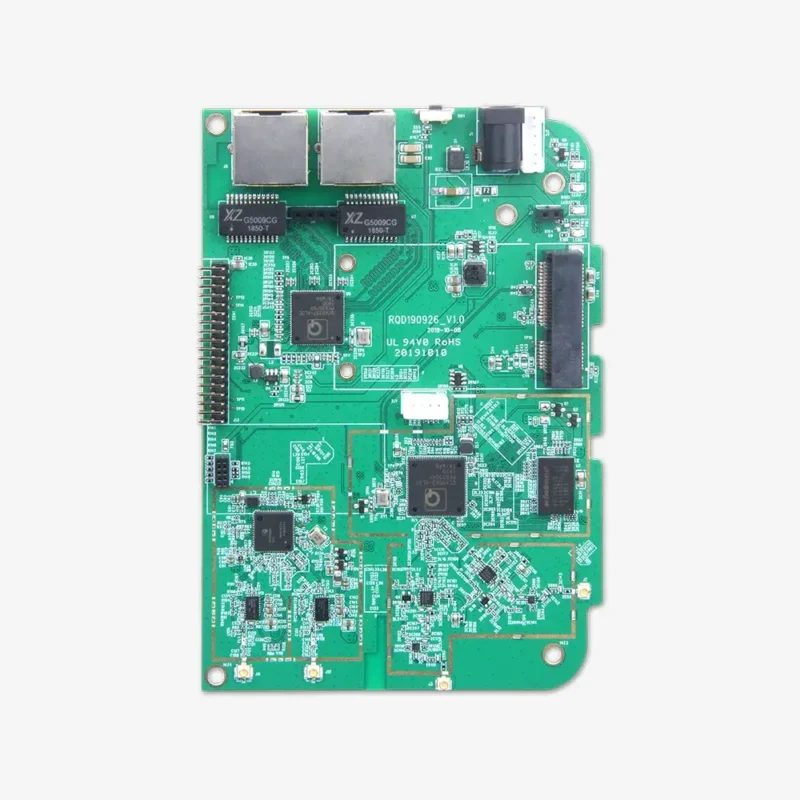

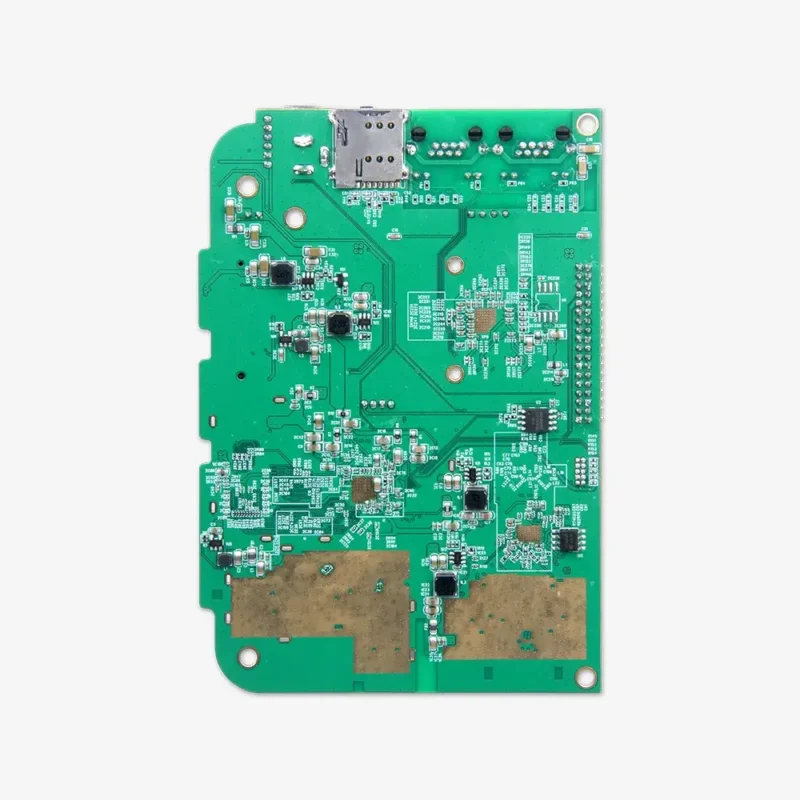

Openwrt Wireless Router Module Board
Qualcomm QCA9563+QCA8337+QCA9886 gigabit cable scheme is adopted, which not only supports 2.4ghz and 5GHz wireless networks, but also integrates LTE functions. Moreover, GT-IoT(Internet of Things interface defined by Geniatech) interface is reserved to support extended RF function modules,such as Zigbee, Z-Wave, BLE, etc. And Geniatech can combine many set-top box products to form lead-by-function set-top box products (accepting customization).
RF module expandable
Support external RF module like Z-Wave,Zigbee, BLE
Specifications
| Processor | OS | Open WRT |
| CPU | QCA9563 | |
| 5G WiFi | QCA9886 | |
| Switch | QCA8337 | |
| RAM | 128M | |
| ROM | 16MB | |
| NETWORK | WiFi-2.4G / WiFi-5G | 802.11 a/b/g/n/ac 2.4GHz/5GHz |
| WiFi Frequency Range | 2.400~2.497GHz, 4.900~5.845GHz | |
| Ethernet port | RJ45*2 10/100/1000Mbps | |
| Mini PCIe Interface | 4G/LTE; SIM Slot | |
| GT-IoT Interface Functions | BT 5.0/BLE | Optional |
| Zigbee | Optional | |
| Z-Wave | Optional | |
| Other RF Module | Customizable | |
| Size (mm) | 130*90 mm | |
| Net Weight (g) | 75 | |
| Adapter | DC12V / 2A | |
