Description

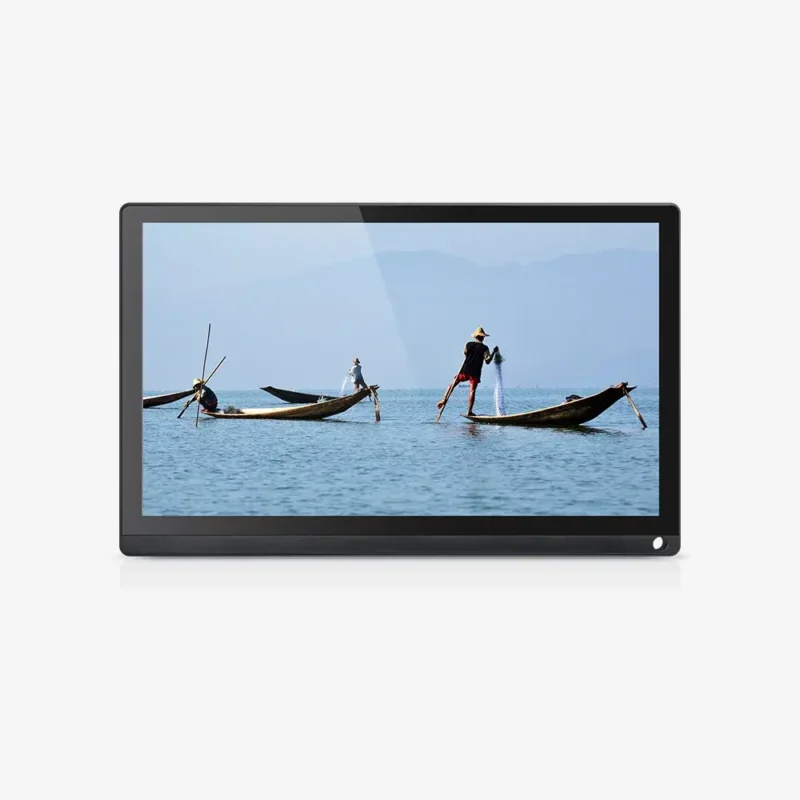

Geniatech TPC-K3 series industrial touch screen computer, screen size from 10″ to 32″ optional, features Rockchip RK3568 processor, supports 10points projected capacitive touch screen, Android 11, Built-in WiFi, BT & LAN, USB, SD/TF card external storage, etc. The Android touch panal PC widely applied as touch control & display device in industrial automation, smart warehouse, HMI, service robot.etc.
Support Multiple High-speed Networks
Surport Wifi6 (802.11 ax), 5G(5th generation),support BT5.0 (optional), MiniPCIE (4G LTE).
Support Microphone Array
The Mic arrany can pick up the speech, which can realize the function of far-field speech, noise suppression, echo elimination to achieve clearer speech function.
High Performance
The industrial tablet is built in the Soc of RK3568, 64-bit, Quad-core ARM CortexA55, Neon and FPU. The board support LPDDR4 up to 8G. RK3568 integrated high-performance NPU, which can be used AI applications.
A variety of interfaces
Equipped with various interfaces such as GbE ports, USB3.0, HDMI2.0 output/ HDMI input, RS232/Microphone, Micro SD card, it can be easily connected to different industrial equipment to meet a variety of industrial needs.
Multi-operating System
Support Android 10 and Linux system
Capacitive Screen
10 points touch, short response time
Built in TV Tuner
Turn Your All in One PC into a TV
Dual-display Support
Along with the HDMI 2.0a port, this enables dual simultaneous displays.
Remote Management
Can remotely wake up, restart, standby, etc.
HDMI IN Optional
This Can Realize The PIP Function
Multiple sizes are available
Display from 10.1 to 65 inches,
resolution from 1280*600 to 4K screen
Specification
| Screen size | Available in size of 15.6″, 18.5″, 21.5″, 23.6″, 27″, 32″ |
|---|---|
| Screen type | Touchscreen – 10 Point Capacitive |
| LCD Panel Type | LCD |
| LCD Panel resolution | 1920*1080 |
| Ratio | 16:9 |
| CHIPSET | RockChip RK3568, Quad-core ARM Cortex-A55, Rooted |
| Operation System | Android 11.0/ Debian 10 optional |
| Interface – Connection portals | HDMI OUT, Micro SD card, USB 3.0, RS232, Power Input, LAN input for Internetconnection – RJ45, 3.5mm Jack |
| Resolution Internal VideoPlayer | 1920*1080 |
| Housing type | Closed Plastic Frame |
| Usage | 24/7 |
| Network options | • 1*Gigabit Ethernet (10/100/1000M) • 2T2R WiFi (802.11 a/b/g/n/ac (ax optionl) ) • Bluetooth 5.0 • Mobile Network (3G/4G/5G ) – Optional |
| Speakers | 2x 3W |
| Camera | Front 2M / 5M pixels optional |
| Memory | 2GB LPDDR4 (1G/4G Optional) 16GB (8G/32G/64G Optional) |
| PowerAdapter | AC 100-240V 12V/2A |
