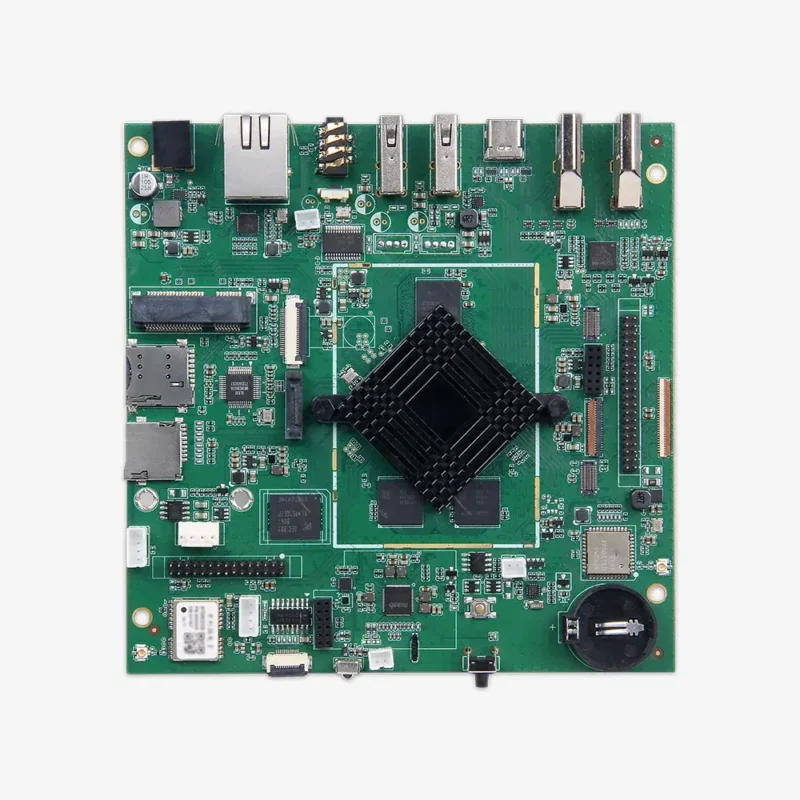

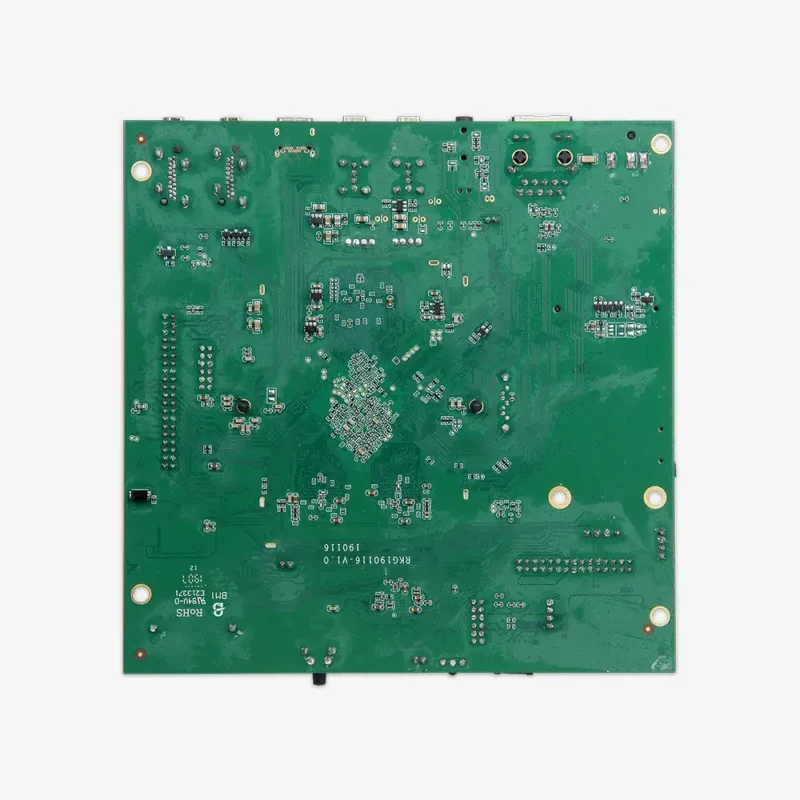

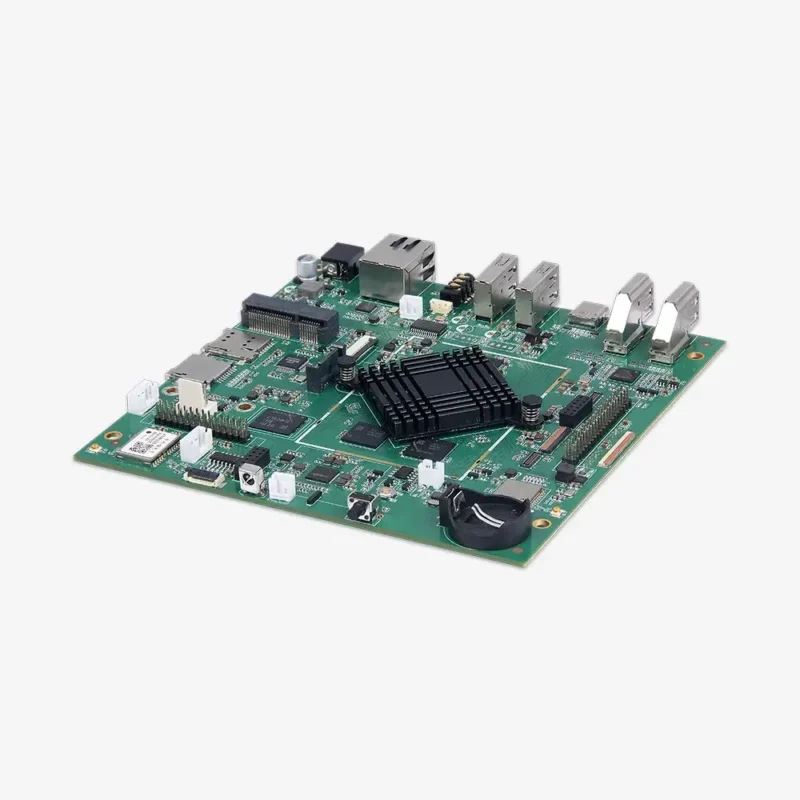

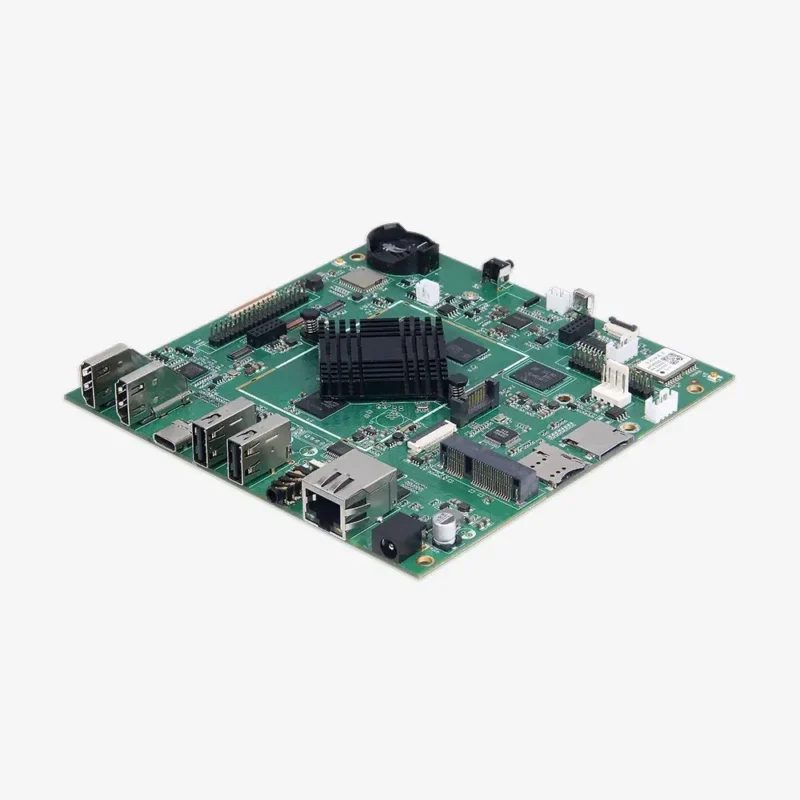

Rockchip RK3399Pro AI Development Board

$245.00$299.00

SKU: DB3399Pro Category: Tag:


Description

High Performace AI Open Source Platform

Lower Power, Highly-efficent and Stable, Integrated NPU, Rich Expansion Interfaces, Easy to develop

Geniatech’s DB3399Pro is AI embedded development board, features Rockchip RK3399Pro AI processor, a low power, high performance processor for edge computing, personal mobile internet devices and other smart device applications, it integrates dual-core Cortex-A72 and quad-core Cortex-A53 with separate NEON coprocessor.

AI Embedded Board with HDMI, eDP, MIPI DSI and DisplayPort Support.

the embedded board features 2.0MP camera, 3GB RAM, 8GB/16GB/32GB eMMc flash to choose, Android 8.1 OS, Gigabit Ethernet, WiFi/BT, multiple LCD panel display interfaces support, and lots of high-performance interface to get very flexible solution.

Powerful Haredware Decoding Capability

It is designed to support multi-format video decoders including H.264/H.265/VP9 up to 4Kx2K@60fps, especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG encoder/decoder, and special image preprocessor and postprocessor. Embedded 3D GPU makes RK3399Pro completely compatible with OpenGL ES1.1/2.0/3.0/3.1,OpenCl and DirectX 11.1. Special 2D hardware engine with MMU will maximize display performance and provide very smooth operation.

System Android 8.1
Processor Rockchip RK3399Pro
CPU Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU
Frequency is up to 1.8GHz
NPU Support 8-bit/16-bit Inference
Support TensorFlow/Caffe Model
GPU Mali-T860MP4 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
Supports AFBC (ARM Frame Buffer Compression)
Memory 3GB/6GB LPDDR3
8G/16G/32G, Support eMMC 5.1 with HS400, SDIO 3.0 with HS200
Multi-Media 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps
1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
1080P video encoders for H.264 and VP8
Video post processor: de-interlace, de-noise, enhancement for edge/detail/color
Display Dual VOP: one supports 4096×2160 with AFBC supported; the other supports 2560×1600
Dual channel MIPI-DSI (4 lanes per channel)
eDP 1.3 (4 lanes with 10.8Gbps) to support display, with PSR
HDMI 2.0 for 4K 60Hz with HDCP 1.4/2.2
DisplayPort 1.2 (4 lanes, up to 4K 60Hz)
Supports Rec.2020 and conversion to Rec.709
Interface Dual 13M ISP and dual channel MIPI CSI-2 receive interface
USB 3.0 with type-C supported
PCIe 2.1 (4 full-duplex lanes)
Embedded low power MCU for other application
8 channels I2S supports 8 channels RX or 8 channels TX
Connectivity WLAN 802.11 b/g/n; 802.11ac 2T2R 2.4G/5GHz
Bluetooth 4.2
1x 10/100/1000M Ethernet
2x USB 2.0; 1x USB Tpye-C
Power 12V/2A
Dimension and Weight Dimensions:155mm*105mm
Net Weight: 350g
Package Contents Package Contents: 1 x DB3399 Pro, 1 x power supply
No. Name Description
1 DC IN 12V
2 RJ45 Ethernet 100/1000M
3 Earphone Earphone Jack*1
4 Mic Mic*1
5 USB OTG USB OTG2.0*1(support USB upgrade)
6 USB Host USB Host 2.0*1
7 USB Type-C USB Type-C*1
8 HDMI-out One HDMI-out
9 HDMI-in One HDMI-in
10 Mipi Interface Support mipi camera
11 mipi Interface Support mipi LCD Panel
12 I2S I2S*1
13 D-MIPI_LCD
14 MIPI_LCD
15 MIPI_Camera
16 WIFI Module WIFI Module*1
17 WIFI ANT WIFI ANT Jack*1
18 RTC Battery Battery*1
19 Power Button Power Button*1
20 Reset Button Reset Button*1
21 Speaker
22 IR-in
23 GPIO
24 GPS GPS Module*1
25 GPS-ANT
26 Edp interface Support edp LCD
27 Debug port
28 SATA Power
29 TF card
30 SATA Data
31 Sim Card
32 CIF Camera
33 Mipi PCI-E Jack

Additional information

Weight 1 kg
