RS-G2L100

$145,00

SKU: RS-G2L100 Category: Tag:


Description

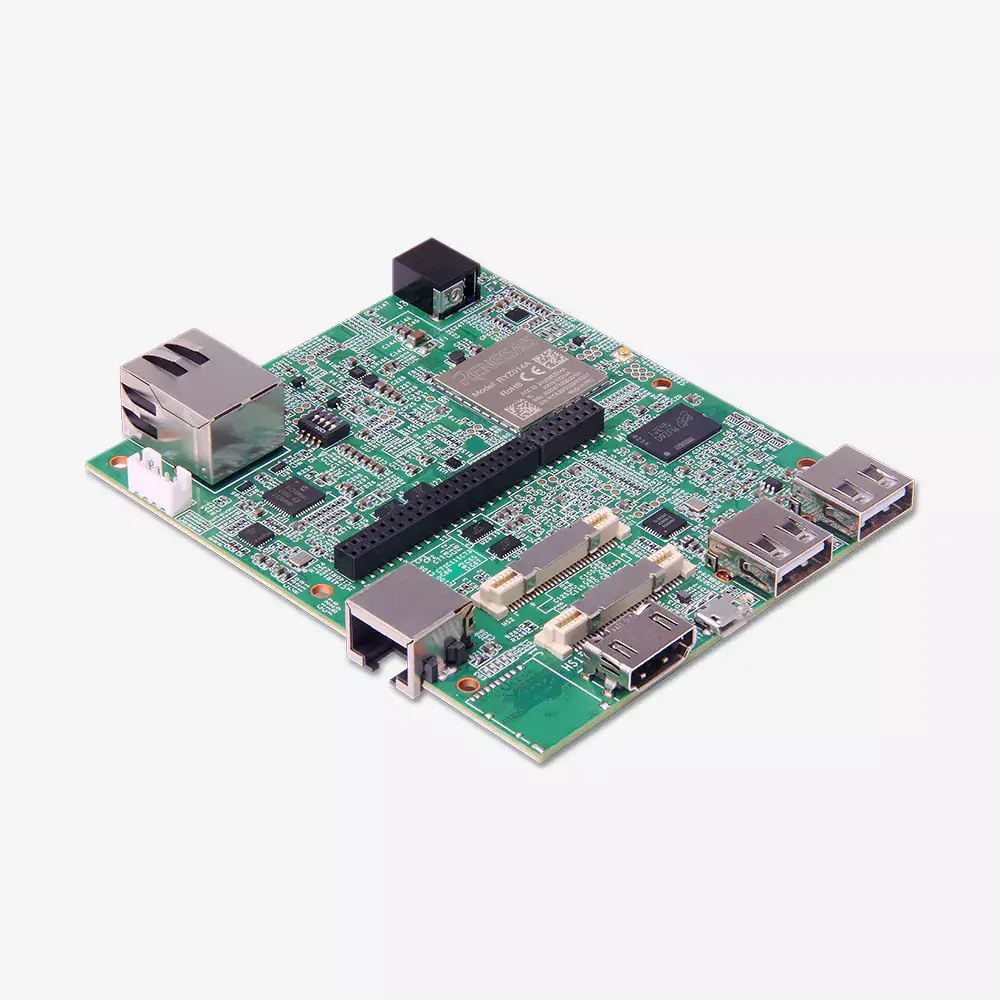

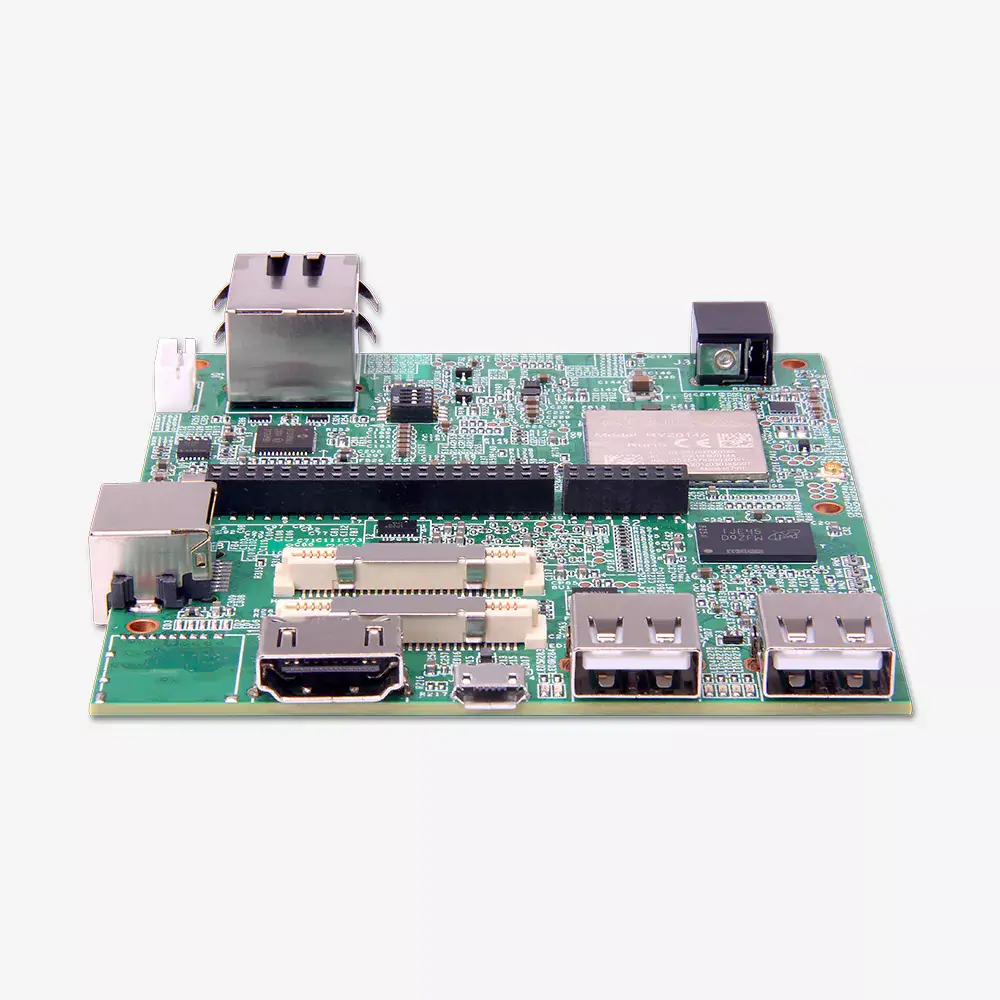

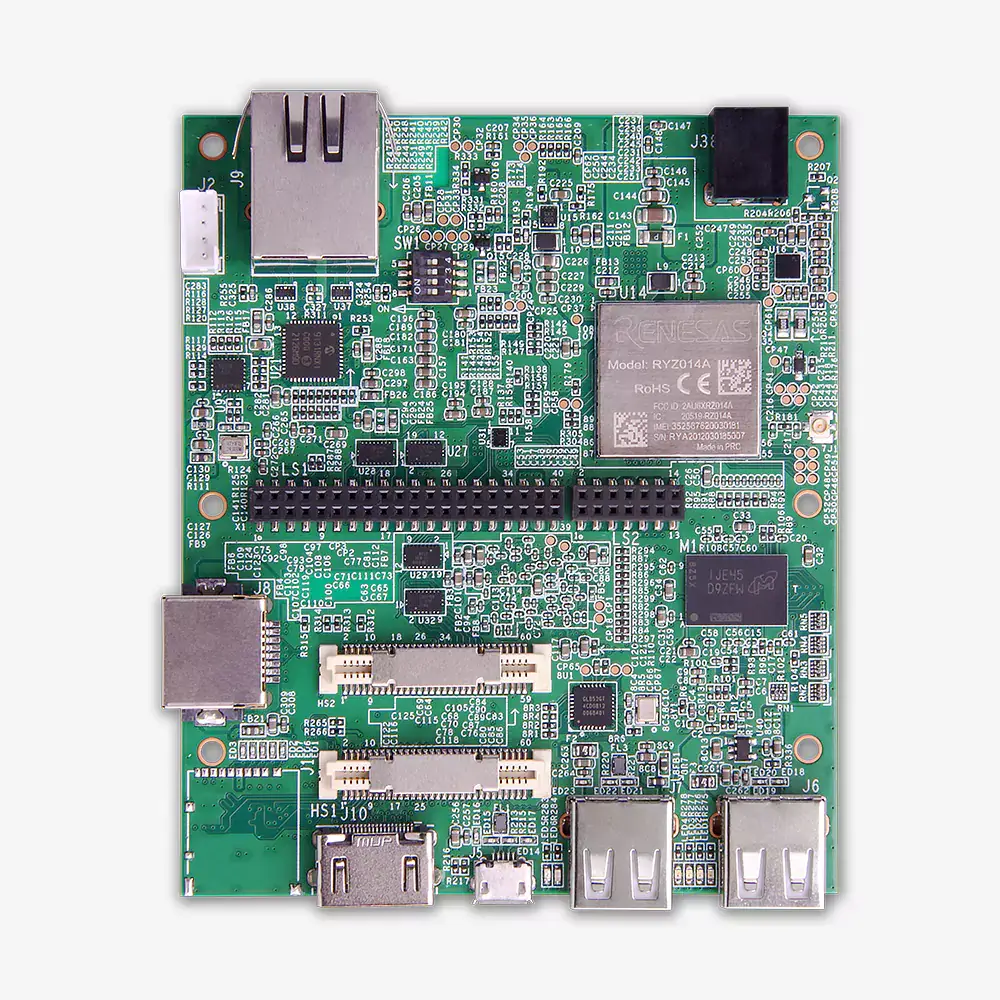

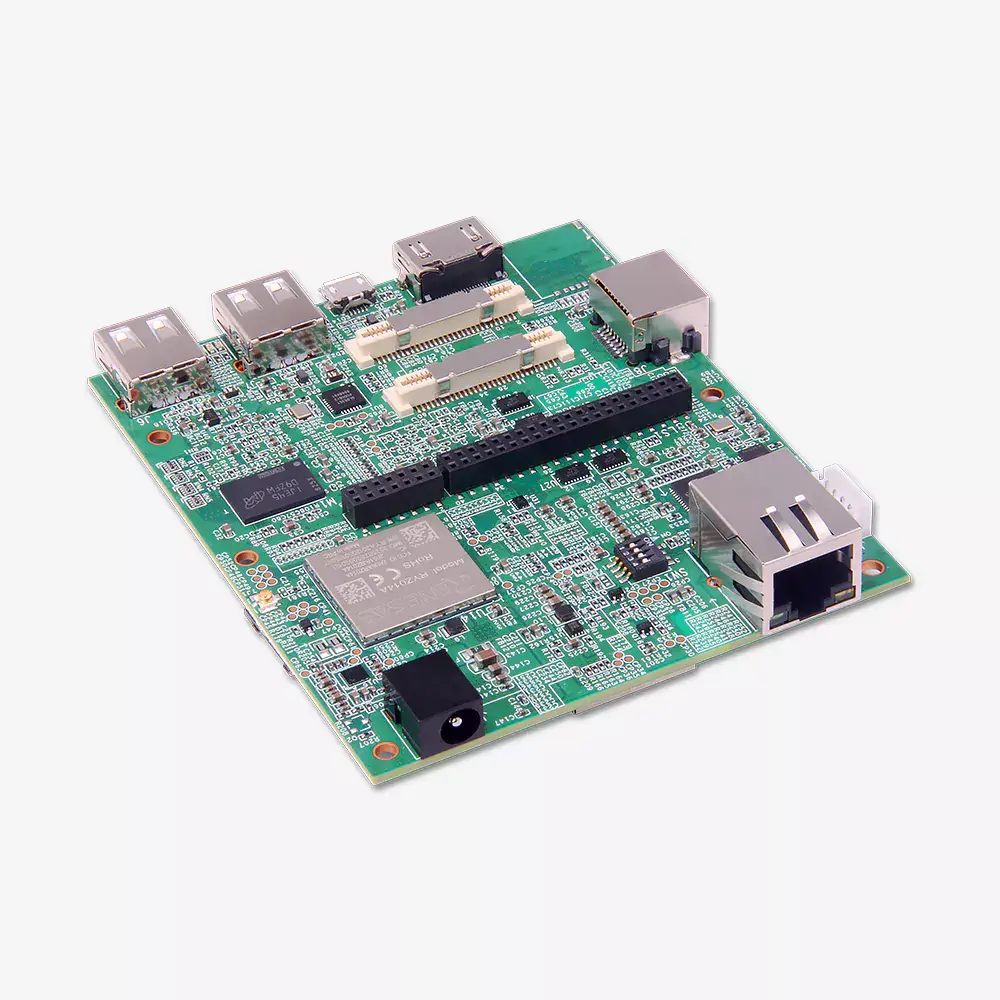

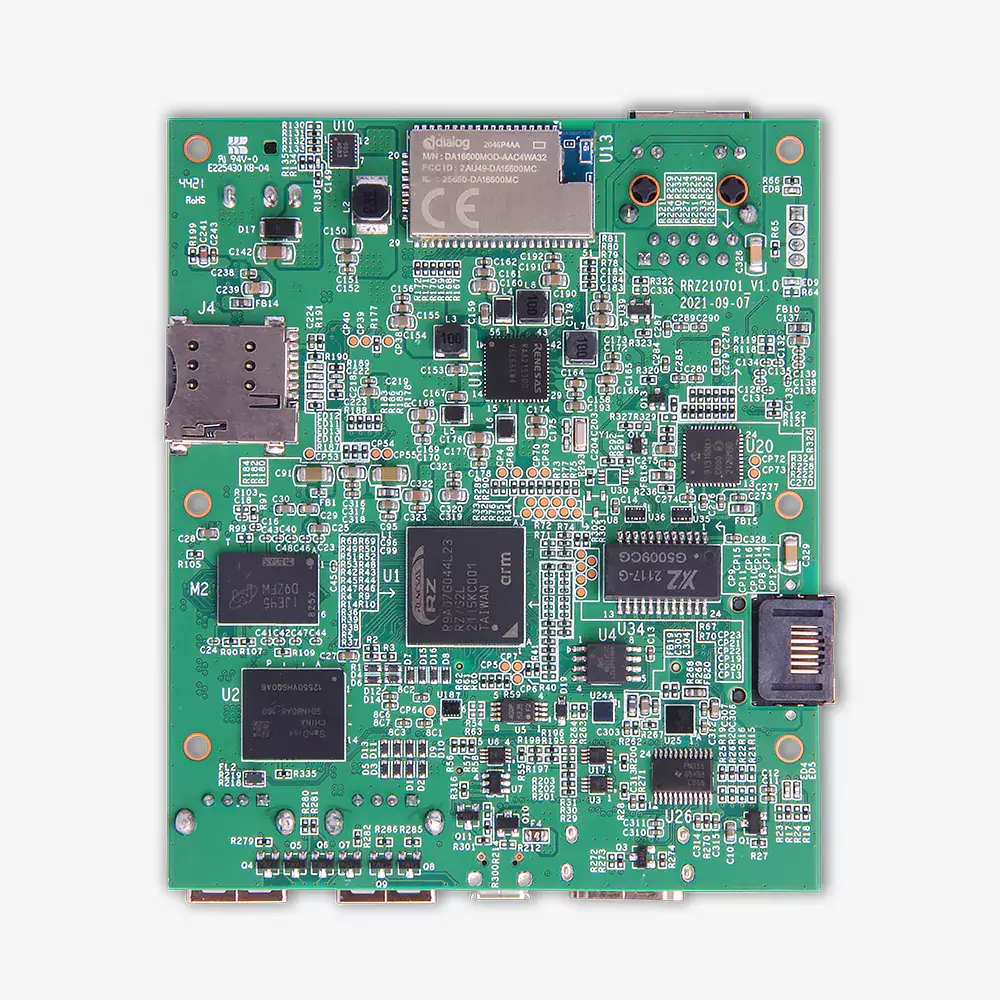

Geniatech AHAURA RS-G2L100 Development Board are based on Renesas low power highly efficient powerful RZ/G2L  SoC, which is jointly designed & manufactured in closed collaboration with Geniatech & Renesas.
The board includes a high-performance 64-bit Dual-core (Cortex A55) processor, HDMI out display support at resolutions up to 1080P, hardware video decodes up to 1080P, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth (BT 5.1 compliant BLE) two Gigabit Ethernet, two USB 2.0 and LTE Cat-M1, as well as supporting different high-speed interfaces such as MIPI-DSI / MIPI-CSI / USB2.0 and low speed 96Boards Mezzanine Connector.

Specification

Product Model RS-G2L100
Chip Model Renesas RZ/G2L
Processing Unit CPU+MCU Dual-Core ARM Cortex-A55+ARM Cotex-M33
GPUs Mali-G31 GPU OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0
VPU Encoding / Decoding
• H.264 / AVC (High Profile / Main Profile / Baseline Profile)
• H.264 / MVC (Stereo High Profile)
• Maximum pixel rate: 1920 x 1080 x 30 fps
ISU Maximum input image resolution: 5M (2800×2047)
• Maximum output image resolution: Full HD (1920×1080)
• Color format conversion support
• RGB / ARGB / YcbCr422 / YcbCr420 / RAW(Grayscale)
Stockpile RAM 4GB DDR4
Flash Memory QSPI NorFlash:16MB
16GB (optional 8-128GB) eMMC
QSPI Maximum clock frequency: 50 MHz (Quad-SPI DDR), 66 MHz (Quad-SPI) SDR),100 MHz (Octal-SPI, HyperFlash
SD 1-bit / 4-bit SD bus supporting default, high speed, UHS-I/SDR50, SDR104 transfer mode
Reticulation Ethernet Interface 2 RJ45s supporting 1000/100/10 Mbps transmission speeds
WiFi Wifi 2.4G and Bluetooth 4.0
LTE LTE Cat1
SIM Card Slot
Demonstrate MIPI-DSI 4-lane MIPI Display Serial Interface, up to 1.5 Gbps per lane, supports Maximum resolution is 1920 x 1080@30fps
HDMI Out Provides HDMI Out connector and supports resolutions up to 1920 x 1080@30fps.
USB 2 x USB Host2.0 , 1 x USB OTG 2.0 support up to 480 Mbps
MIPI CSI Provides 4-lane MIPI camera serial interface, 4-lane supports up to 4000Mbps
I2C Supports master and slave modes, multi-master operation, timeout detection, 7bit a n d 10bit slave addresses.
UART With FIFO, full-duplex mode support, modem control support (asynchronous mode for channels 0, 1 and 2), optional clock synchronous mode,asynchronous mode, or Smart Card mode per IrDA standard version 1.0 Encodes and decodes t h e IrDA communications waveform (on channel 0), supporting separate 16-byte FIFO register.
SPI Supports master and slave modes, programmable bit length, clock polarity, clock phase selectable, and maximum transmission rate: 50 Mbps
Audio Format Supports I2S, Mono, TDM modes, dual-channel serial transmission
supporting 8, 16, 18, 20, 22, 24 and 32-bit data formats Supports
transmission and reception of 32-level FIFOs.
JTAG Supports JTAG debug interface
Software Support Operating System Yocto (Linux 4.19)
System Burn-in Method • SD card (kernel, file system to eMMC)
• USB OTG (Uboot t o QSPI Flash)
Mechanical Property Sizes 100 mm x 85 mm
Interface Standard Class 96Boards CE2.0 standard
Operating Temperature -40~85°C
Power Supply DC input voltage 12V

Additional information

Weight 0.5 kg
CPU

Renesas

OS

Linux
