Industrial-grade System on Module with SMARC 2.1 standard

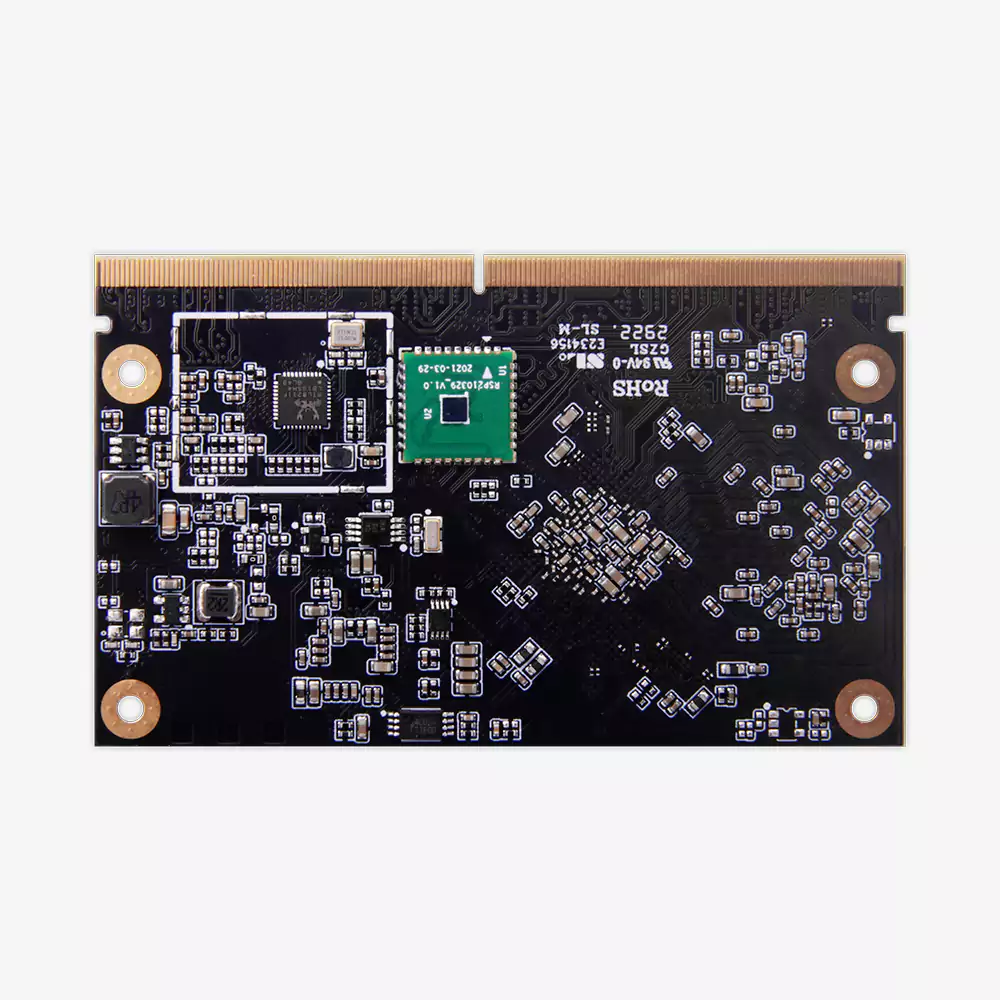

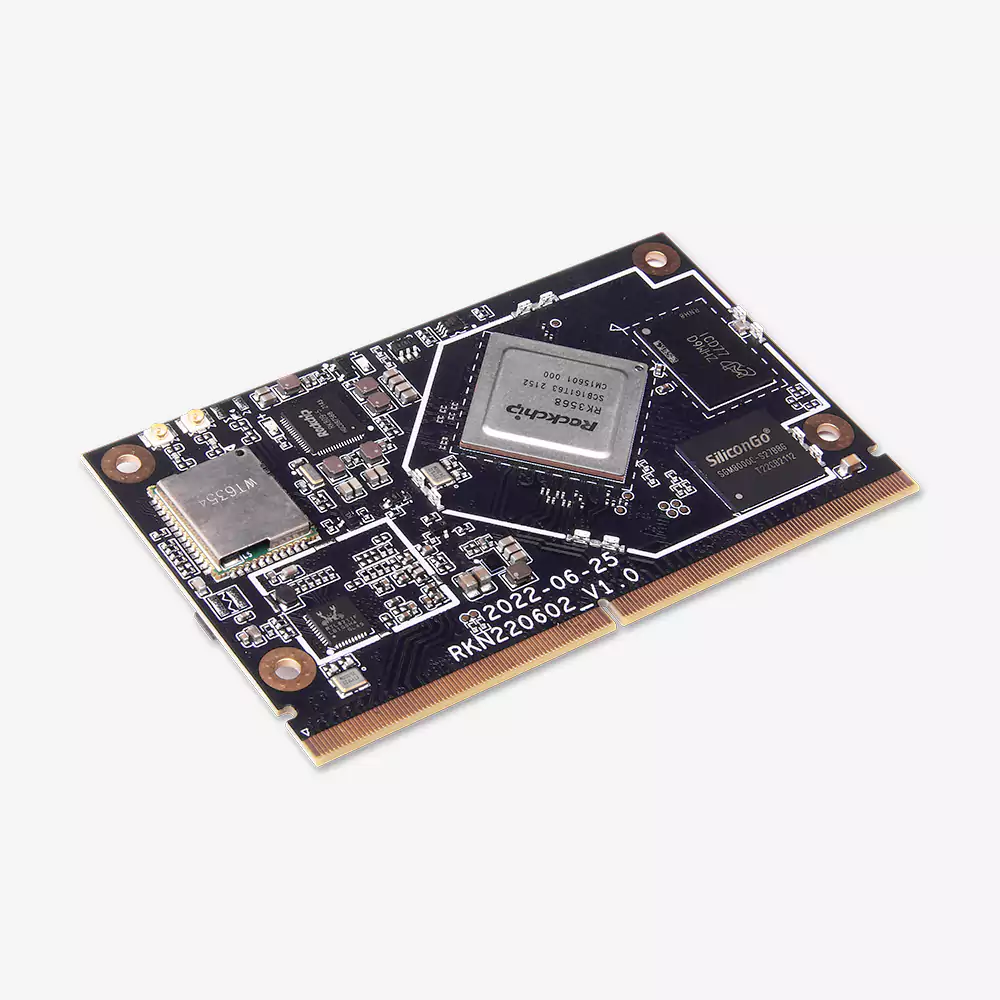

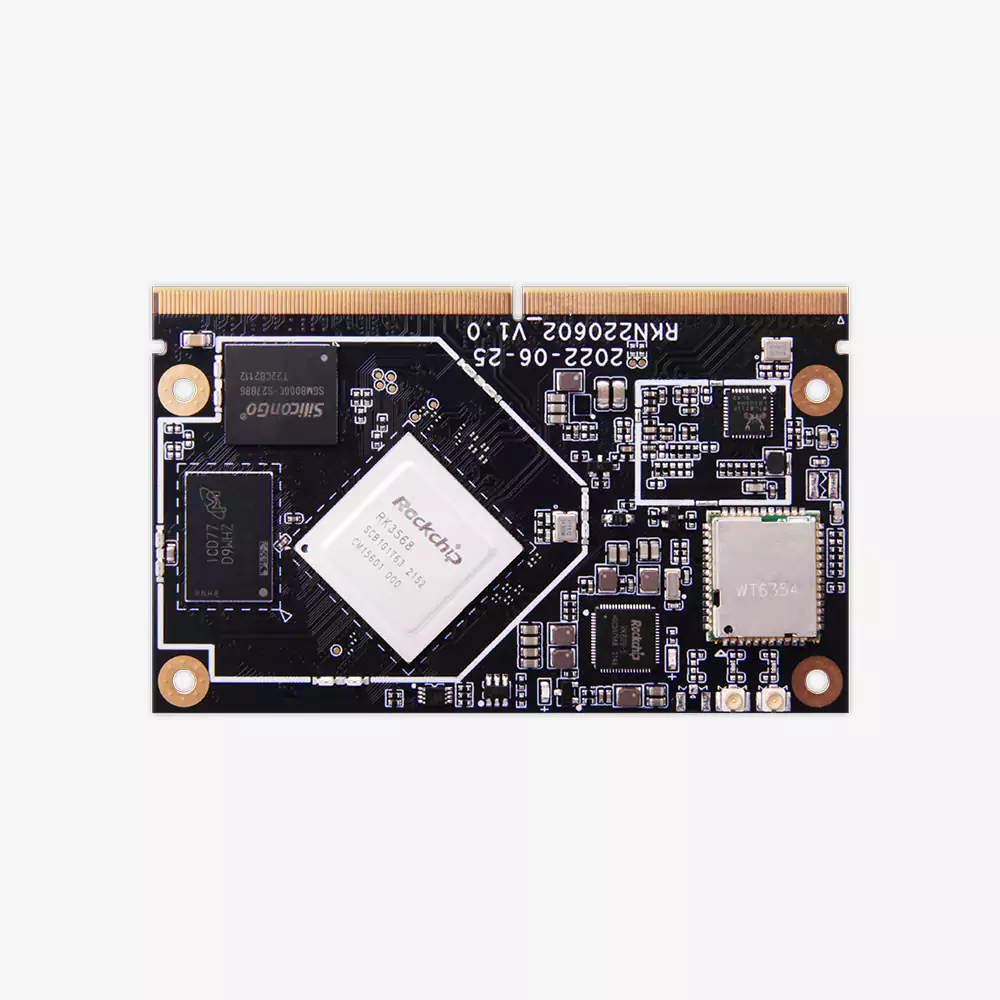

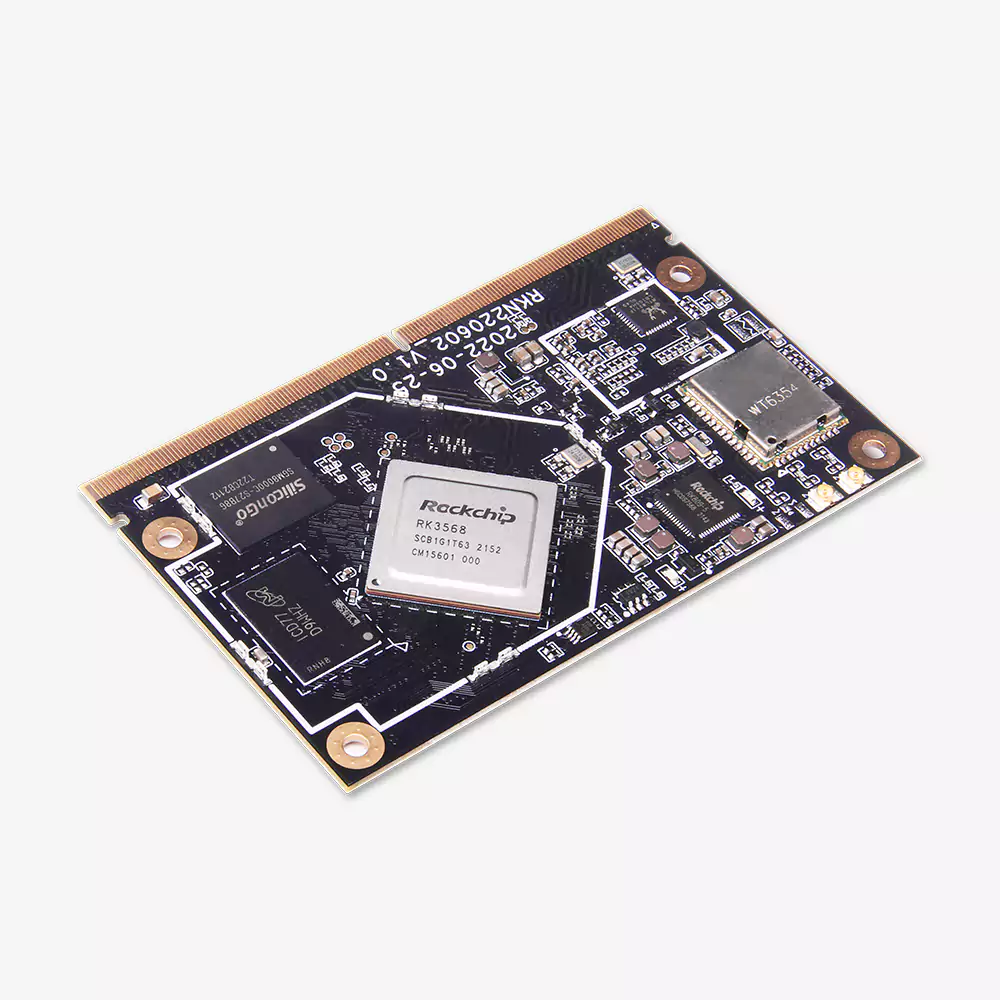

Geniatech SOM-3568-SMARC is an industrial system on module board designed according to the SMARC 2.1 standard, features a quad-core 64-bit Cortex-A55 processor. With support for up to 8GB of RAM and 128GB of storage, it can handle large-scale storage product application scenarios. The SOM board is also equipped with powerful ISP and video decode abilities, a variety of video input and output interfaces, dual gigabit network interface, and supports Wifi, Bluetooth, and 4G/5G communication module. With optional industrial-grade components and strict testing to ensure reliability and stability in harsh environments, the SOM-3568-SMARC is perfect for a wide range of applications, including intelligent NVR, cloud terminal, industrial automation, Internet of things, and commercial display.
Geniatech also provides a range of one-stop customized services, from hardware function design to software development and testing, to help customers shorten their product development cycle.
Specification
| Model | SOM-3568-SMARC, SOM-3568J-SMARC |
| Dimensions | 82*50 mm |
| Operating temperature |
RK3568 (Commercial): 0°C~70°C RK3568J (Industrial): -20°C~85°C |
| System | Android, Linux (Debian, Ubuntu, BuildRooT) |
| Storage | 2GB LPDDR4 (4GB / 8GB optional) 16GB eMMC (32GB / 64GB / 128GB optional) |
| I/O Interfaces | Ethernet: *2（Giga ethernet） PCIe 2.1 *1(1 lane) PCIe 3.0 *1(2 lanes) USB2.0 *2 USB3.0 HOST *1 USB3.0 OTG *1 MIPI CSI *1(4 lanes) MIPI DSI *1(DSI0 &DSI1) HDMI *1(HDMI 2.0) LVDS *1(multiplex with DSI1 ) Wi-Fi *1 GPIO *14（or more） SDIO *1 UART *6 SPI *2 I2C *4 CAN *1 I2S *1 |
| Network | WiFi:Supports WiFi6 (802.11ax) and Bluetooth Ethernet: Supports dual Gigabit Ethernet ports(1000 Mbps) Cellular: supports 4G/5G communication module interface expansion |
| Processor | Rockchip RK3568 / Rockchip RK3568J |
| CPU | Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz |
| NPU | 1Tops@INT8, integrated high-performance AI accelerator RKNN NPU Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet |
| GPU | ARM G52 2EE Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
| VPU | Supports 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 60fps H.265/H.264 video encoding Supports 8M ISP, supports HDR |
| Power | DC 5V/2A |
