Credit-card-sized Quad Core Single Board Computer

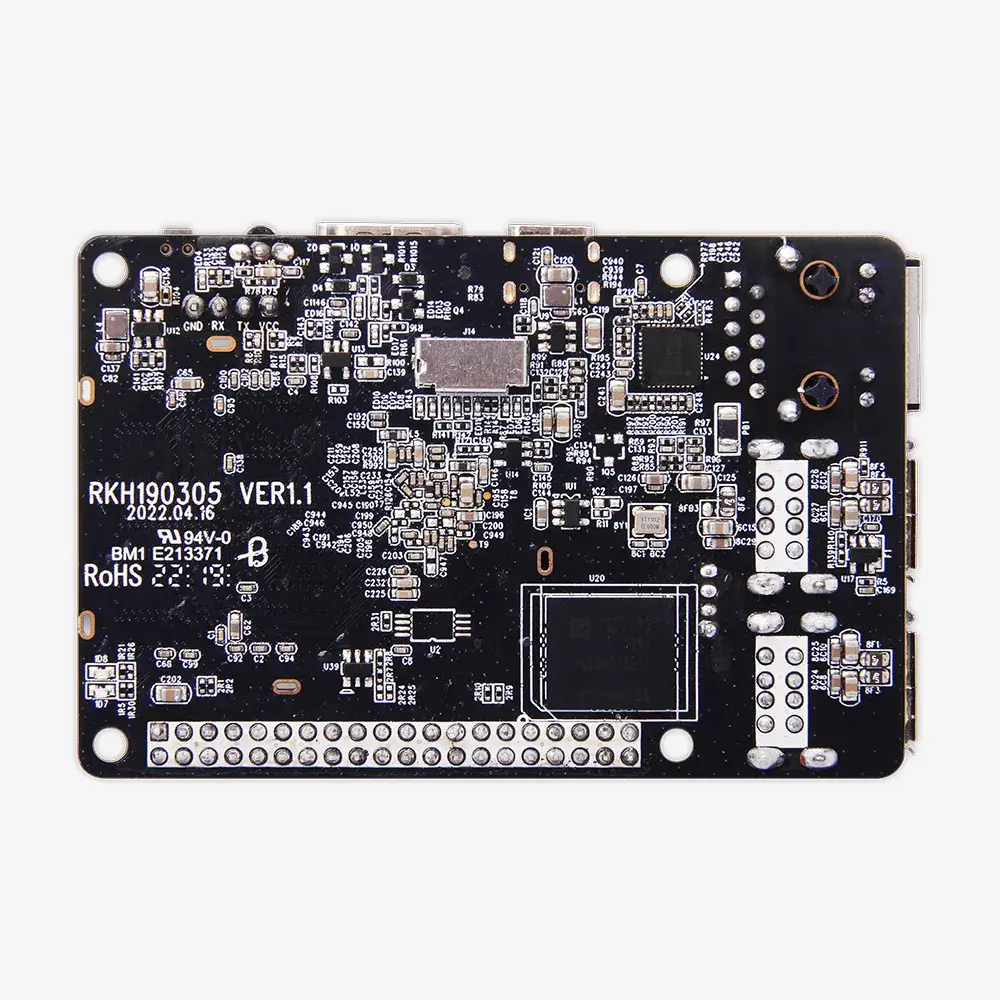

Geniatech XPI-3128 is an ARM based quad core single board computer with Raspberry Pi Form Factor, features Rockchip RK3128 cortex-A7 processor, excellent arithmetic and graphics processing capabilities, provide high performance video output, smoothly high-resolution (1080p@60fps) display, HEVC hardware is integrated for support H.265 Decoder, it support 2.4G/5GHz Wi-Fi (802.11 a/b/g/n/ac), support BT4.0, onboard 100M Ethernet port, support external 40pin interface, include Uart I2S PCM I2C GPIO PWM, get user very flexible solution.
Compatibility and Extensibility
40 Pin header enables hardware re-use by maintaining compatible alternate pin functions like I2S, I2C, PWM, UART, and GPIO. Form-factor compatible with Raspberry Pi 3 for easy migration.
Specifications
| Chipset | Rockchip RK3128 | |
| Software | Android 7.1/Linux (Debian 10/buildroot) | |
| Processor | CPU | Quad-core Cortex-A7 up to 1.2GHz |
| GPU | Mali-400MP2 GPU | |
| DDR | 512MB（1G Optional） | |
| EMMC FLASH | 8GB（16G/32G Optional） | |
| Network | Ethernet | RJ45, 10/100M |
| WiFi jack | Optional (Different types of wifi interface can be customized ) | |
| Bluetooth | Optional | |
| Interface | TF Card Slot | TF card *1(max. 64GB) |
| HDMI | HDMI out*1 | |
| USB Host | USB Host 2.0*4 | |
| DC IN | DC IN*1 | |
| Extension GPIO | Extension GPIO*1 | |
| UART | UART*1（Debug） | |
| Codec | Video | 1080P 60fps video decode (H.265,H.264,VC-1, MPEG-1/2/4, VP8) |
| 1080P video coding，supports H.264,VP8 | ||
| Audio | Supports MP3, AAC, WMA | |
| Photo | jpeg, jpg,png | |
| Weight | 45 g | |
| Dimensions | 85 mm * 56 mm * 1.6 mm | |
| Operating Temp | 0°C to 70°C | |
| Adapter | DC5V / 2A | |
| Accessory | Power Adapter, WIFI Module(Optional) | |
