Credit-card-sized Low Cost ARM Single Board Computer with Android and 4K

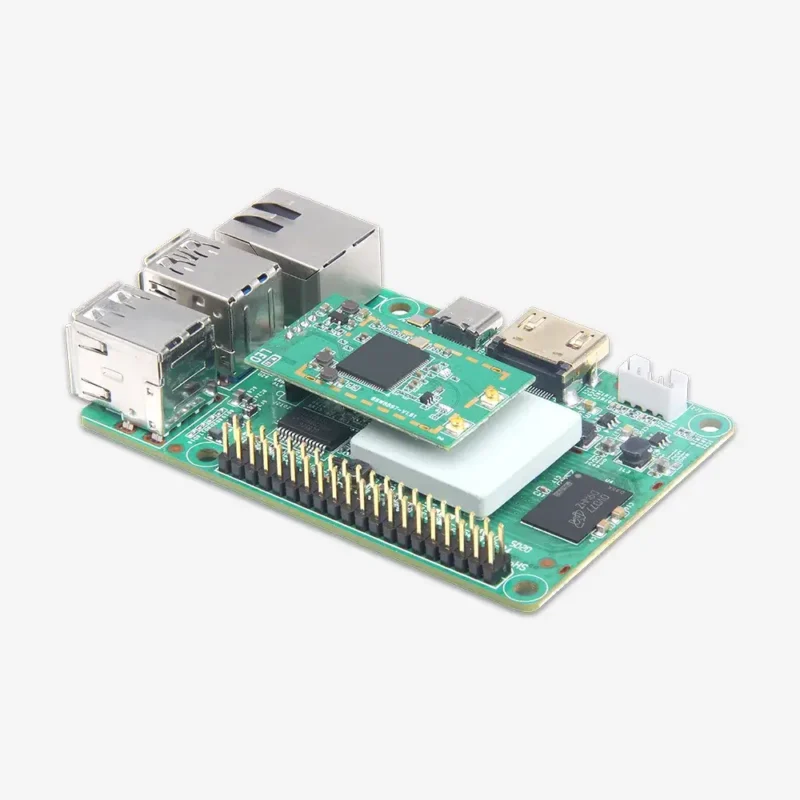

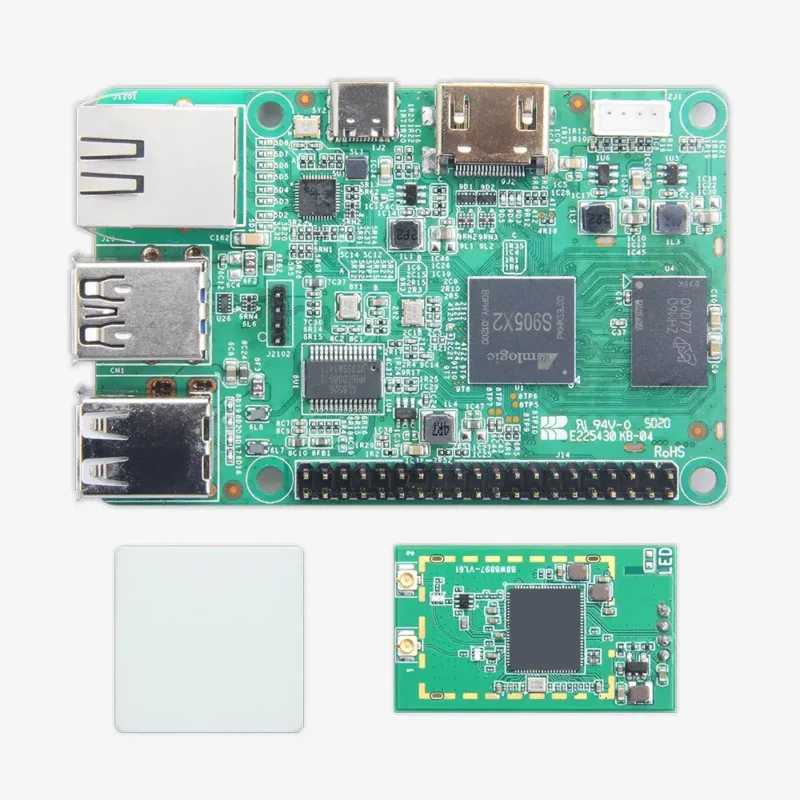

Geniatech XPI-S905X3 is an Android single board computer with Raspberry Pi Form Factor, features Amlogic S905X3 (S905X4 optional) quad-core processors, supports 4K video playback, 2GB RAM, 8GB eMMC, GbE, HDMI, WiFi & Bluetooth, 3x USB 2.0, 1x USB 3.0, 40-pin GPIO, UART, etc. According to the definition of Raspberry Pi, which is suitable for the field of teaching, research, and industrial entry-level single board computer.
Compatibility and Extensibility
40 Pin header enables hardware re-use by maintaining compatible alternate pin functions like SPI, I2C, PWM, UART, and GPIO. Form-factor compatible with Raspberry Pi for easy migration.
Powerful Hardware Decoding Capability
| Media Remark | Codec |
| Video/Picture Decoding | 4KP120 10 bit: AV1 (XPI-S905X4 only) |
| VP9 Profile-2 up to 4Kx2K@60fps | |
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | |
| AVS2-P2 Profile up to 4Kx2K@60fps | |
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | |
| H.264 MVC up to 1080P @60fps | |
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | |
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | |
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | |
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | |
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | |
| RealVideo 8/9/10 up to 1080P@60fps | |
| Multiple language and multiple format sub-title video support | |
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | |
| Supports JPEG thumbnail, scaling, rotation and transition effects | |
| Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
Specifications
| Chipset | Amlogic S905X3 (S905X4 optional) | |
| Software | Android 9.0 | |
| Processor
|
CPU | Quad-core Cortex-A55 |
| GPU | ARM G31 MP2 GPU | |
| RAM | 2GB(1GB~4GB Optional) | |
| EMMC FLASH | 8GB（16G/32G Optional） | |
| Network | Ethernet | RJ45, 1000M |
| WiFi | Optional (Different types of wifi interface can be customized ) | |
| Bluetooth | Optional | |
| Interface | TF Card Slot | TF card *1(max. 64GB) |
| HDMI | HDMI out*1 | |
| USB | USB 2.0*3 and USB3.0*1 | |
| USB Type-C | Power IN*1 | |
| Extension GPIO | GPIO*28 | |
| UART | UART*1 | |
| Dimensions | 85 mm * 56 mm | |
| Accessory | Power Adapter, Cooling fin, WIFI Module(2.4G&5.8G / BT4.0) Optional | |
