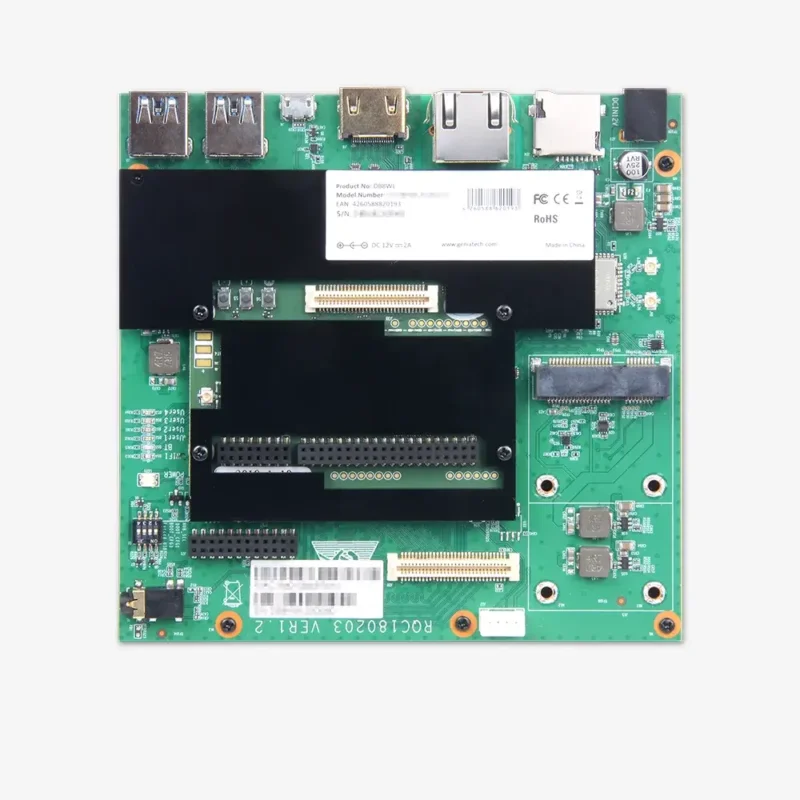

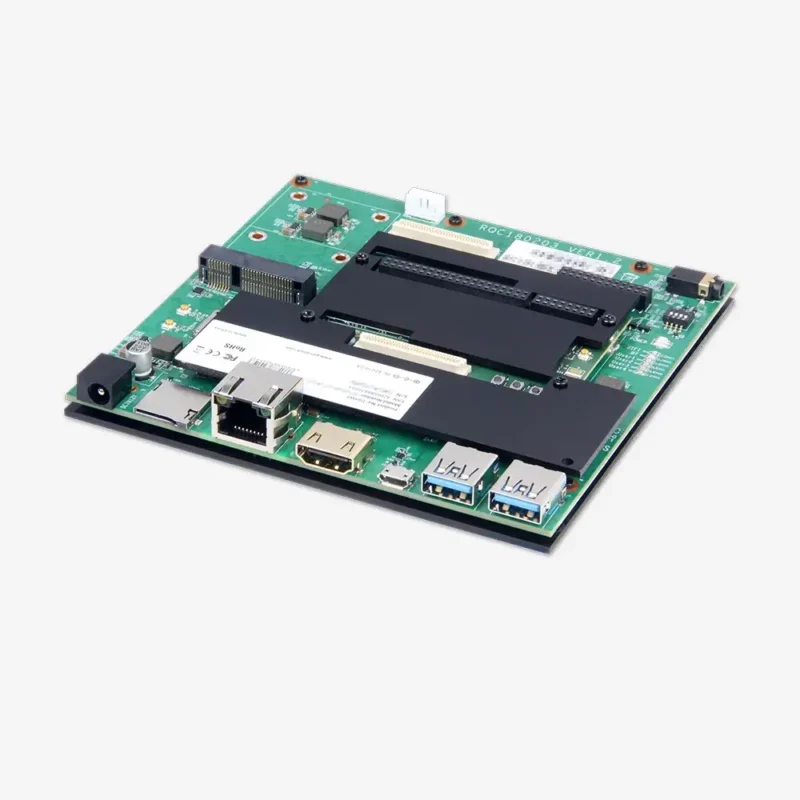

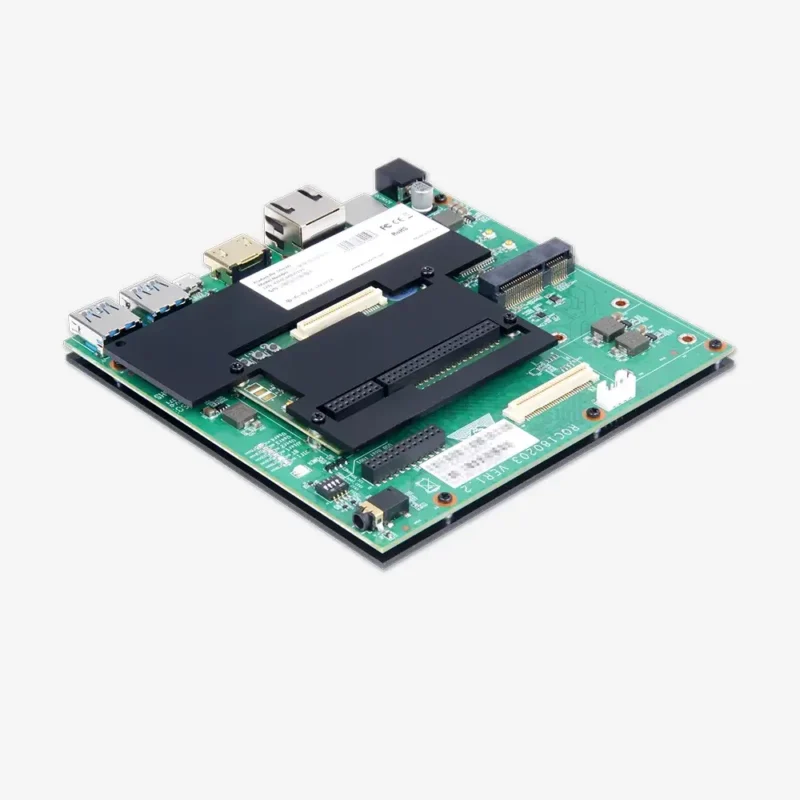

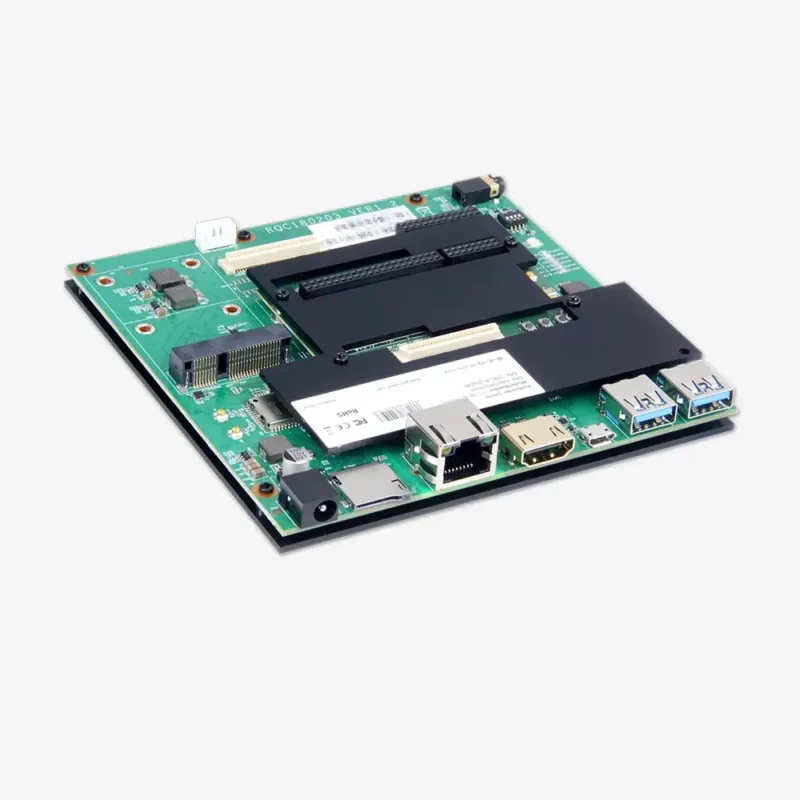

Developer Board 8 (Snapdragon SD820E)

$350.00

SKU: DB8 Category:


Description

The Developer Board 8 is based on the Qualcomm® Snapdragon™ 820E embedded platform with the custom 64-bit Qualcomm® Kryo™ quad-core CPU and is compliant with the 96Boards Consumer Edition Extended Versionspecification managed by Linaro. The combination of the Snapdragon 820E embedded platform’s powerful Qualcomm® Adreno™ 530 GPU andquad-core CPU expands the possibilities of connected computing and high quality visual experiences while providing the ultimate in power efficiency.

Features

Core SystemModel: DB8
Processor: Qualcomm Snapdragon 820E
OS-support: Linux Debian today, Linux OpenEmbedded – later 2018
Memory/Storage: Dual-channel PoP LPDDR4 + 64GB UFS 2.0 and SD 3.0
Camera: Integrated Dual ISP with support for 3 image sensors up to 28MP
Expansion Interface Expansion Connectors:
1x 96boards 40 pin Low-Speed connector (UART x2, SPI, I2S, I2C x2, GPIO x12, DC power)
1x 96boards 60 pin High-Speed connector (4L-MIPI DSI, USB,I2C x2, 2L+4L-MIPI CSI)
2x Analog expansion connector (headset, speaker via sound-wire interface, microphones, line-outs)
1x 60 pin High-Speed connector (secondary 4L-MIPI DSI, SSC serial busses,
TSIF – connection available only in hardware)
I/O Interfaces:
HDMI Full-size Type A connector (4K@60fps)
1x USB 2.0 micro B (device mode only), 2x USB 2.0 type A (host mode only), micro SD card slot
1x GbE RJ45, 1x PCIe HMC, headset
Expansion connector a. 1x 40 pin Low Speed (LS) expansion connector
-UART, SPI, I2S, I2C x2, GPIO x12, DC power
b. 1x 60 pin High Speed (HS) expansion connector
-4L-MIPI DSI, USB, I2C x2, 2L+4LMIPI CSI
c. Footprint for one optional 16-pin Analog expansion connector
-Headset, Speaker, FM antenna
Power 12V/2A
Dimension and WeightSize:100mm * 85mm * 15mm
Net Weight: 82g
Package ContentsPackage Contents: 1 x DB8

Additional information

Weight 1 kg
Form Factor

96boards
