Ultra-high integration, ultra-small size

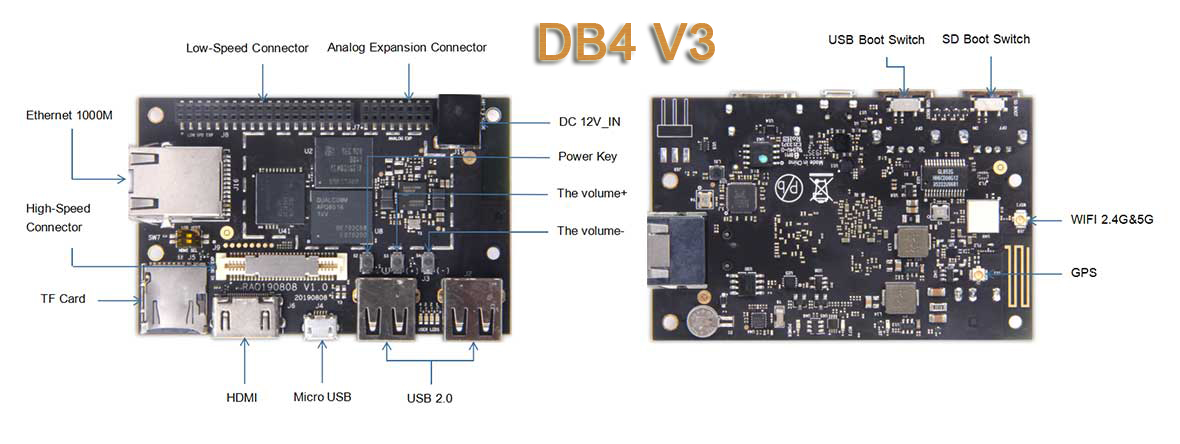

● I/O Interface：
Ethernet port, USB 2.0,micro USB,GPS,HDMI,TF Card .In addition to the board’s own interface,to meet customer needs,60-pin High Speed (HS) expansion connector and40-pin Low Speed (LS) expansion connector can develop different interfaces according to different requirements .
● Expansion interface：
SPI x1; UART x1,I2C x4; SDIO x1 ; I2S x1, GPIO x12,etc.
Versatile board platform for NextGen embedded and IoT devices
Geniatech DB4 V3 is easily compatible with and extends various functional modules. It is widely used in various embedded fields and Internet of things. These include robots, cameras, set-top boxes, medical devices, vending machines, building automation, industrial controls, digital signage and entertainment games.
Application scenarios – IoT Healthcare – Use Real Time Information to make better decisions
Application scenarios – Smart home – Use Real Time Information

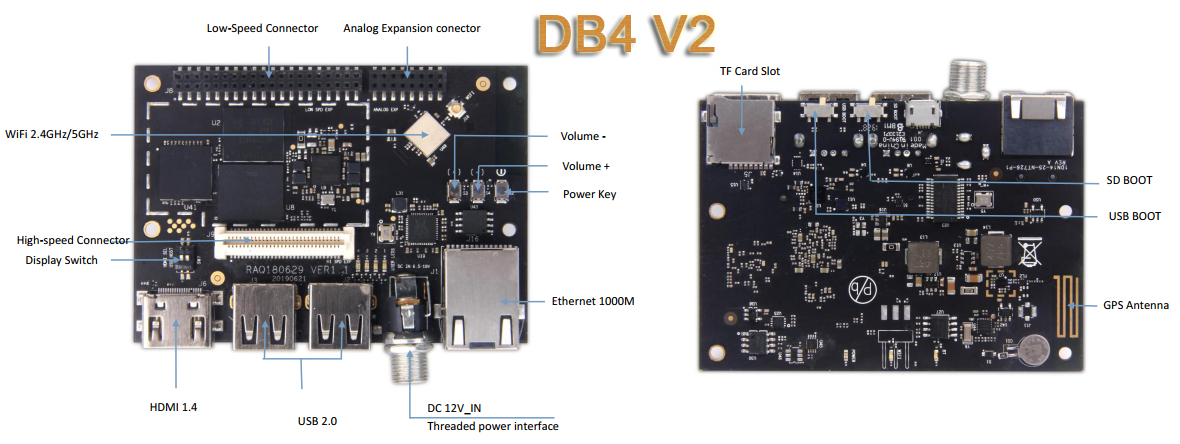

| Model | DB4 V3 | DB4 V2 | DB4 |
|---|---|---|---|
| Size (mm) | 85 * 60 | 85 * 60 | 85 * 60 |
| Wireless | WLAN 802.11 b/g/n/ac 2.4GHz/5.0GHz | WLAN 802.11 b/g/n 2.4GHz | |
| Ethernet port | RJ45 10/100/1000Mbps Ethernet | RJ45 10/100Mbps Ethernet | |

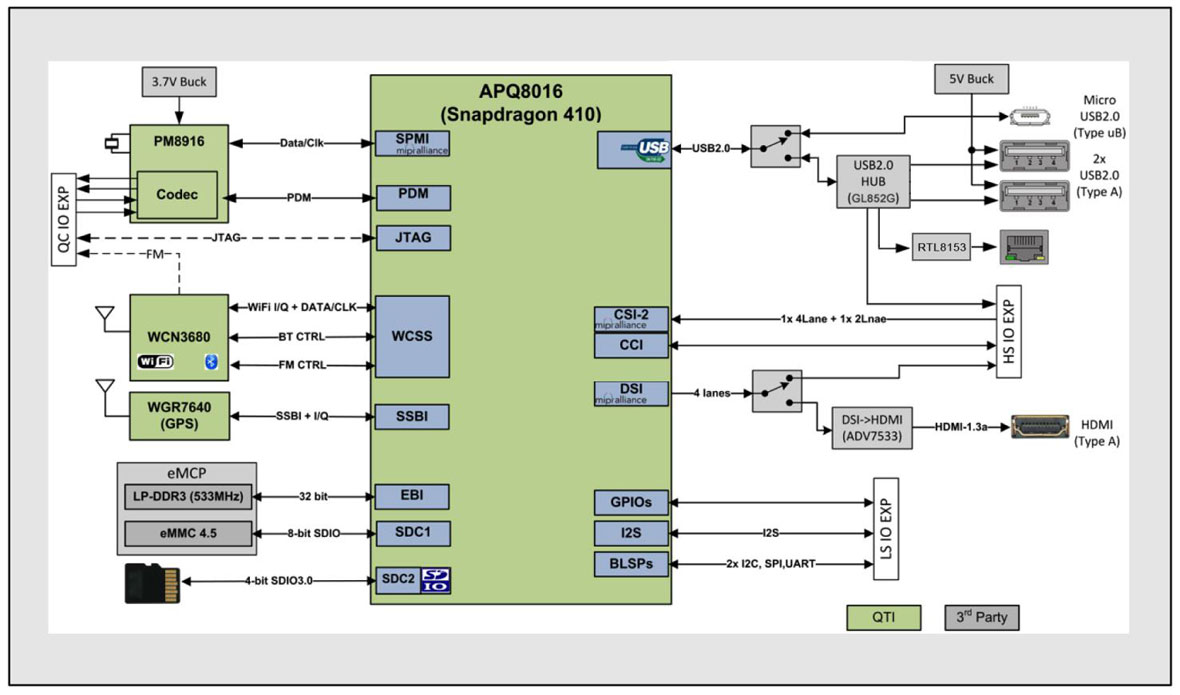

| SOC | Qualcomm® Snapdragon™ 410E (APQ 8016E) | ||
| CPU | ARM Cortex-A53 microprocessor cores up to 1.2 GHz 64-bit processor Cortex M3: Modem power manager (MPM) | ||
| GPU | Qualcomm® Adreno™ 306 GPU(up to 400 MHz 3D graphics accelerator) support for advanced APIs, including OpenGL ES 3.0, OpenCL, DirectX, and content security | ||
| RAM | 1GB or 2GB LPDDR3 533MHz | ||
| Storage | 8GB or 16GB eMMC 5.0 SD 3.0 (UHS-I) | ||
| USB Interface | One USB 2.0 micro B (device mode only) Two USB 2.0 (host mode only) | ||
| GPS | Yes | ||
| Camera | Integrated ISP with support for image sensors up to 13MP 4-lane CSI0 2-lane CSI1 | ||
| Display Interface | 4-lane MIPI_DSI | ||
| Expansion connector | 1x Mezznine boards 40 pin Low-Speed connector • UART, SPI, I2S, I2C x2, GPIO x12, DC power 1x Mezznine boards 60 pin -Speed connector High • 4L-MIPI DSI, USB, I2C x2, 2L+4L-MIPI CSI Footprint for one optional 16-pin Analog expansion connector • Headphone output, Class-D speaker driver output, Microphone input,FM RX Antenna | ||
| User Interface | Power/Reset Volume Up/down 7 LED indicators • 4 – user controllable • 3 – for Power, WLAN, BT | ||
| System Software | Android 6.0 Linux based on Debian Windows 10 IoT core | ||
| Power | 12V,2A DC:+6.5V to +18V | ||
