RK3568 Embedded Development Board (K3-3568 & DB3568)

$135.00$155.00

Model :
+ -3 more
Clear selection
SKU: db3568 Category: Tag:


Description

Industrial Embedded Development Board with RK3568 ARM Processor, LVDS, eDP, MIPI, DSI, and CSI Support.

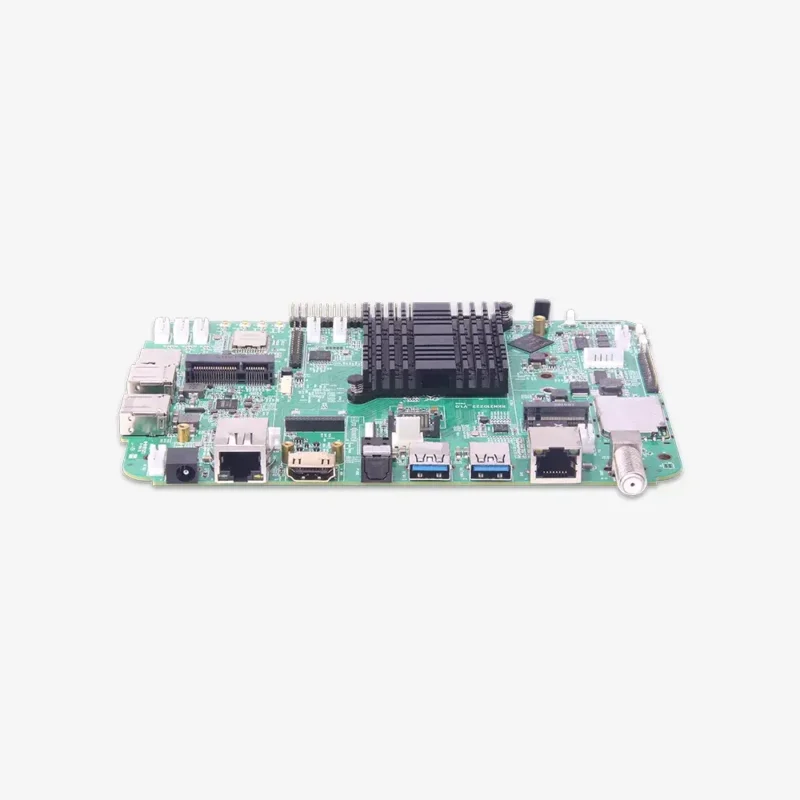

Geniatech DB3568 and K3-3568 are the intelligent embedded  development board with high performance and stability, it adopts Rockchip 64-bit processor RK3568, integrates dual core architecture GPU and high performance NPU. The board can support 8G LPDDR4, support Android 11.0/ Linux. The board has LVDS\eDP\MIPI\HDMI and other display interfaces,support the multiple networks: WIFI6, 4G/5G. It support the Tuner Module, which is convenient to play real-time TV programs, record and playback TV programs. It support HDMI IN Module, which can realize the PIP function, up to 4KP30. It support Mic arrany, which can realize the functions of far-field speech, noise suppression, echo elimination. Geniatech provide open source SDK, which make easy to secondary development, as well as customized apps for customers.

Model K3-3568 DB3568
Display 1 x HDMI OUT
1 x HDMI IN (MIPI CSI optional)
1 x MIPI DSI
1 x LVDS
1 x EDP
1 x HDMI OUT
1 x HDMI IN (MIPI CSI optional)
1 x MIPI DSI
1 x LVDS
1 x EDP
USB 1 x USB3.0
1 x USB2.0
2 x USB3.0
2 x USB2.0
Other Interface miniPCIe/M.2/Mic In/Speaker/RS-232/RS-485(Optional) miniPCIe/M.2/Mic In/Speaker/RS-232/RS-485(Optional)
Connectivity WIFI/802.11.AC (WiFi6/802.11 AX optional)
Bluetooth 5.0
1 x Gigabit Ethernet (RJ45 10/100/1000M)
Optional 3G/4G/5G Support
WIFI/802.11.AC (WiFi6/802.11 AX optional)
Bluetooth 5.0
2 x Gigabit Ethernet (RJ45 10/100/1000M)
Optional 3G/4G/5G Support
Dimension 142mm*118mm
180mm*130mm
System Android 11/Linux
Processor Rockchip RK3568
CPU Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz
GPU ARM G52 2EE
Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Embedded high-performance 2D acceleration hardware
NPU 1Tops@INT8, integrated high-performance AI accelerator RKNN NPU
Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
VPU Supports 4K 60fps H.265/H.264/VP9 video decoding
Supports 1080P 60fps H.265/H.264 video encoding
Supports 8M ISP, supports HDR
Memory 2GB (4GB/8GB optional)
16GB eMMC(8~128GB optional)
GTIOT (Optional) Support multiple optional wireless protocols: Z-WAVE / ZIGBEE / LoRa / LTE / GPS / WiFi / BT5.0
Tuner Support a variety of digital TV reception : DVB-T2/T/C,ATSC1.0/3.0, ISDB-T/DTMB
WatchDog/RTC Support
Power DC 12V/2A
Accessory 1 x power supply
DB3568
No. Name Description
1 RF Connector Support ATSC/DVB-T2/ISDB-T/DTMB
2 RJ45 1000M Ethernet Port
3 USB3.0 jack USB OTG 3.0*1 and USB Host 3.0*1
4 SATA Connector SATA 3.0
5 SPDIF SPDIF*1
6 FPC Connector MIPI RX
7 HDMI OUT HDMI 2.0a
8 RJ45 1000M Ethernet Port
9 DC IN 12V/2A
10 POE socket *2 (4Pin 2.0)
11 DEBUG *1 (4Pin 2.0)
12 HDMI IN Module Connector 30Pin socket
13 USB2.0 jack *2 USB HOST
14 Mic In *1 2pin white socket on board.
15 Mini PCIe socket *1 (3G/4G module).
16 TF Card socket *1 (Max to 128GB)
17 WIFI module *1 (Optional)
18 USB2.0 jack *3 4pin white socket on board.
19 WIFI Antenna *5 (IPEX socket)
20 LVDS *1 30Pin LVDS socket
21 UART Jack *2 4Pin2.0mm white socket on board
22 FPC Connector *1 for Mic Array
23 Speaker Connector *1 4Pin2.0mm white socket on board
24 Backlight Connector 6pin 2.0mm white socket on board
25 eDP Connector *1 30Pin eDP socket
26 M.2 Connector *1
27 SIM Card socket *1(3G/4G module)
28 Touch Switch Reset Button
K3-3568
No. Name Description
1 RJ45 *1(10/100/1000M Ethernet)
2 USB3.0 *1
3 HDMI Slot *1(Support HDMI 2.0a)
4 TF Card Slot *1(Up to 512GB)
5 USB2.0 *1
6 DC IN *1(12V Adapter)
7 POE In *1
8 UART *1
9 RTC Battery In *1
10 DEBUG *1
11 GTIoT *1(External IoT module)
12 MiniPCIe Slot *1(for 3G/4G module)
13 Wifi Module *1
14 Wifi Antenna *2
15 LVDS Slot *1
16 MIPI DSI Slot *1
17 MIC Array Slot *1
18 IR *1
19 USB Slot *1(for wifi module)
20 USB Slot *1
21 USB Slot *1
22 Speaker Slot *1
23 USB Slot *1
24 Backlight Slot *1
25 eDP Slot *1
26 HDMI IN Slot *1
27 POE Out Slot *1
28 Tuner Module *1(Support DVB-T/T2、ATSC1.0/3.0、ISDB-T)
29 SIM Card Slot *1
30 M.2 Slot *1 (for 5G module)

Additional information

Weight 1 kg
Model

DB3568, K3-3568
