RK3588 8-Core 8K AI System on Module

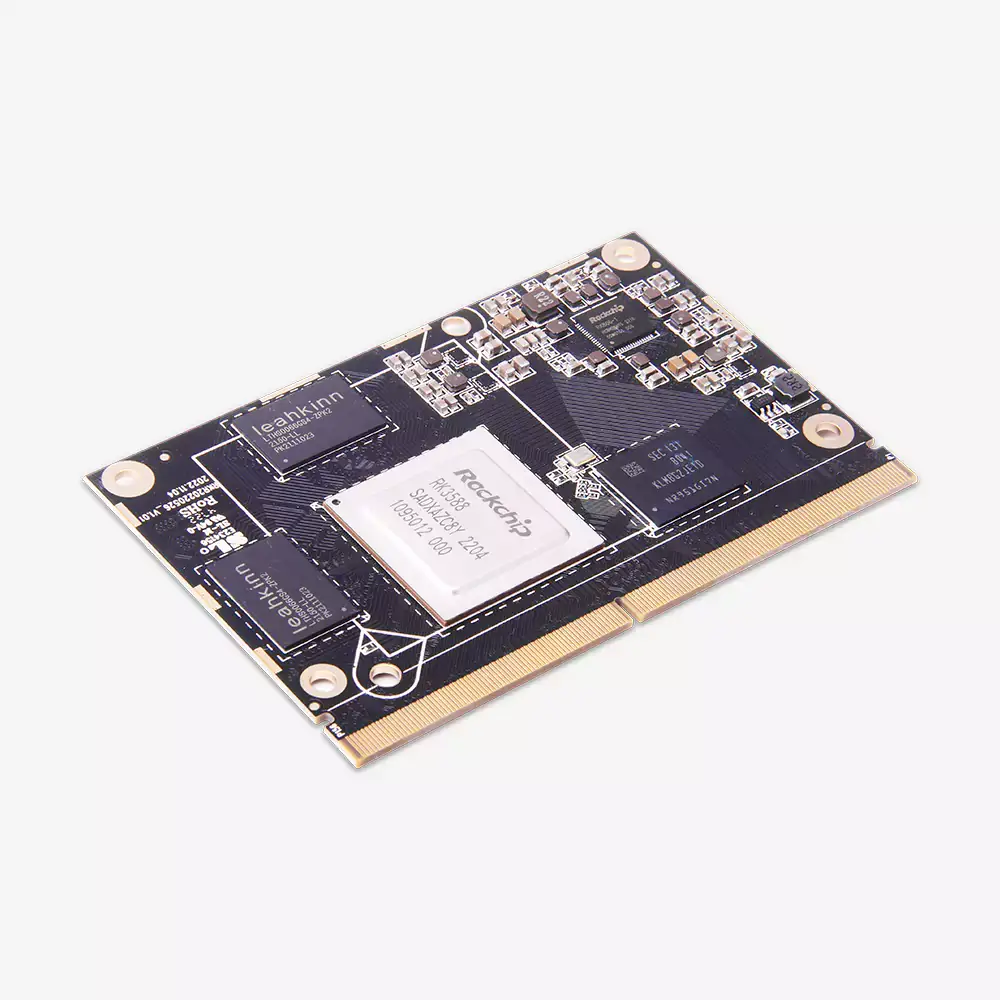

Geniatech SOM3588 is a powerful system-on-module that features the RockChip RK3588 flagship chip with integrated 6Tops NPU and quad-core Mali-G610 MP4 GPU. It supports various operating systems and provides strong performance, stability, reliability, and scalability for AI application scenarios. With up to 32GB RAM, 8K video encoding and decoding capabilities, and abundant interfaces, SOM3588 is an ideal choice for edge computing, artificial intelligence, cloud computing, and more.
Geniatech DB3588V2 consists of Geniatech SOM3588 and the carrier board. All pin sources are available and easy-to-use on carrier board circuited from the SOM3588, which is much convenient to users.
- Powerful RK3588 processor with built-in AI NPU
- Up to 32GB RAM and 128GB eMMC
- 8K video encoding and decoding
- Support multiple operating system
- Customizable and open source
Specification
| Chipset | Rockchip RK3588 | |
| OS | Android 12.0, Linux Ubuntu Desktop, Linux Ubuntu Server, Debian 11.0, Buildroot, RTLinux | |
| Processor | CPU | Octa-core 64-bit 4 x Cortex-A76 + 4 x Cortex-A55 8nm advanced process, up to 2.4GHz |
| GPU | Mali-G610 MP4 (4x256KB L2 Cache) OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.2, 450 GFLOPS |
|
| NPU | NPU computing power up to 6TOPS, support INT4/INT8/INT16 mixed computing Network model conversion based on TensorFlow/MXNet/Pytorch/Caffe and other frameworks |
|
| ISP | Integrated 48MP ISP and HDR & 3DNR multi-algorithm gas pedal | |
| VPU | Video decoding 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding 8K@30fps encoding, H.265 / H.264 support * Up to 32 channels 1080P@30fps decoding and 16 channels 1080P@30fps encoding |
|
| Memory | RAM | 4GB LPDDR4 (8/16/32GB optional) |
| Storage | 32GB eMMC5.1 (64/128/256GB optional) | |
| Interface | Display | 2x HDMI Output( 7680x4320@60Hz) 1x HDMI Input(4096x2160p@60Hz) 1x eDP 1x MIPI CSI |
| Camera | 2 x MIPI DSI | |
| Connectivity | 2 x GIGABIT Ethernet | |
| Expansion | PCIe3.0 (2×2lanes,1×4lanes,4×1lanes) 3× PCIE2.0(1 lanes) 3× SATA |
|
| I/O Interfaces | 137x GPIOs 4x I2S, 5x SPI, 9x I2C 12x SDIO, 2x SPDIF 6x ADC, 16x PWM |
|
| USB | 1x USB Host 3.0 2x USB Host 2.0 2x USB OTG 2.0 |
|
| Mechanical Characteristics | Size: 82 x 53 mm Board Structure: SDIOMM 314Pin standard core board |
|
| POWER | 5V/3A | |
| Operating Temperature | 0°C ~ 80°C (RK3588, Commercial) optional -40°C ~ 85°C (RK3588J, Industrial) |
|
