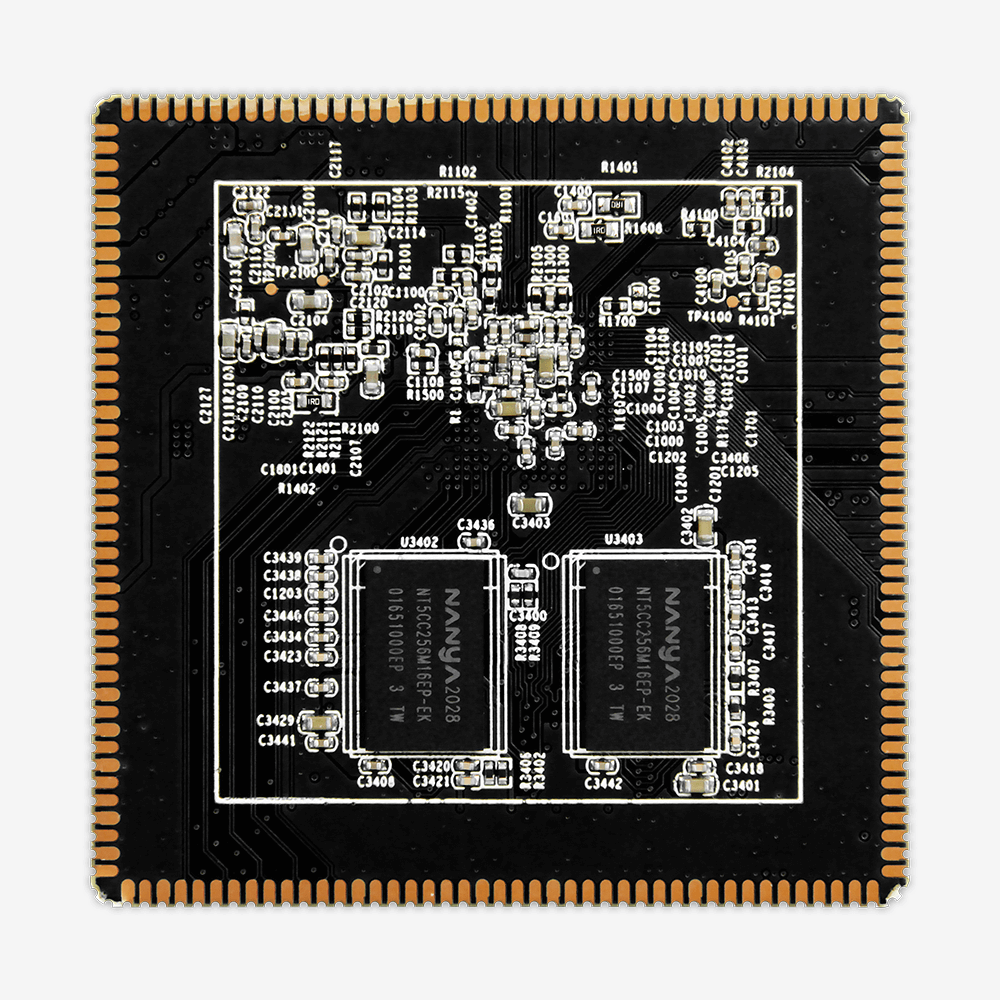

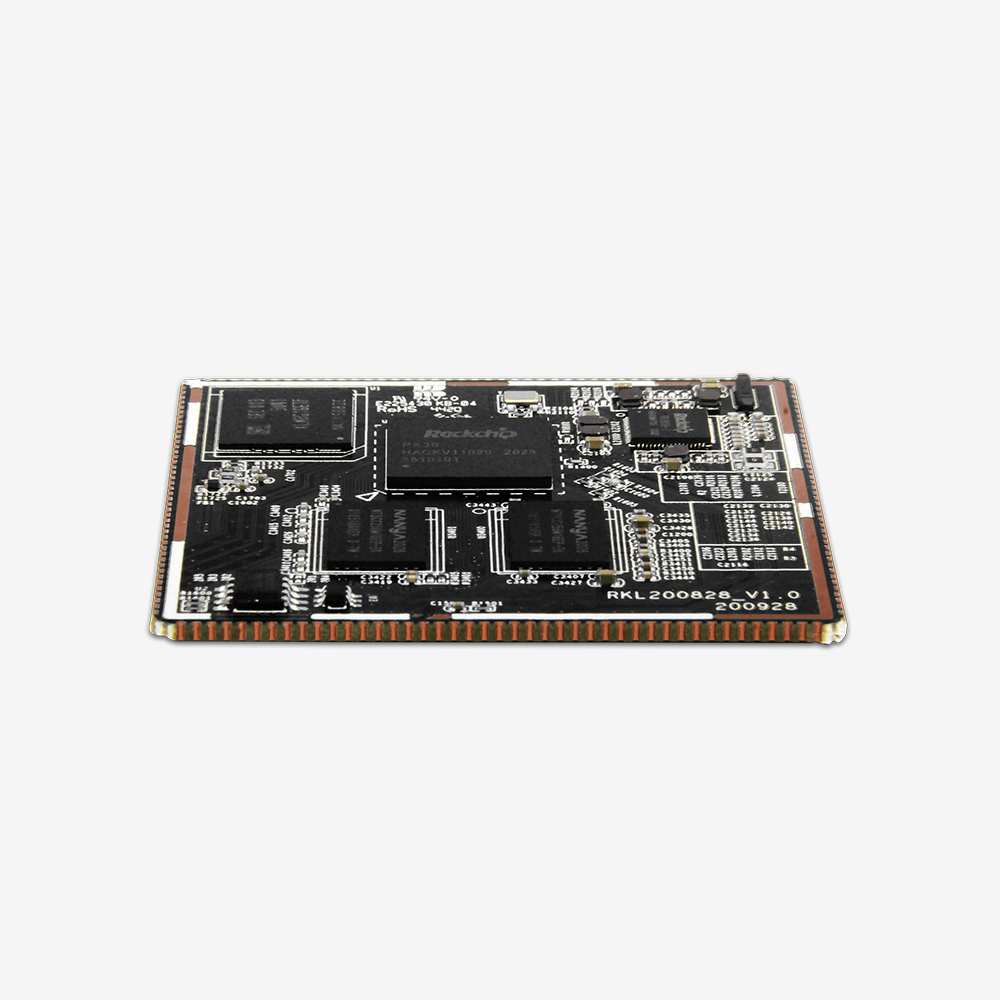

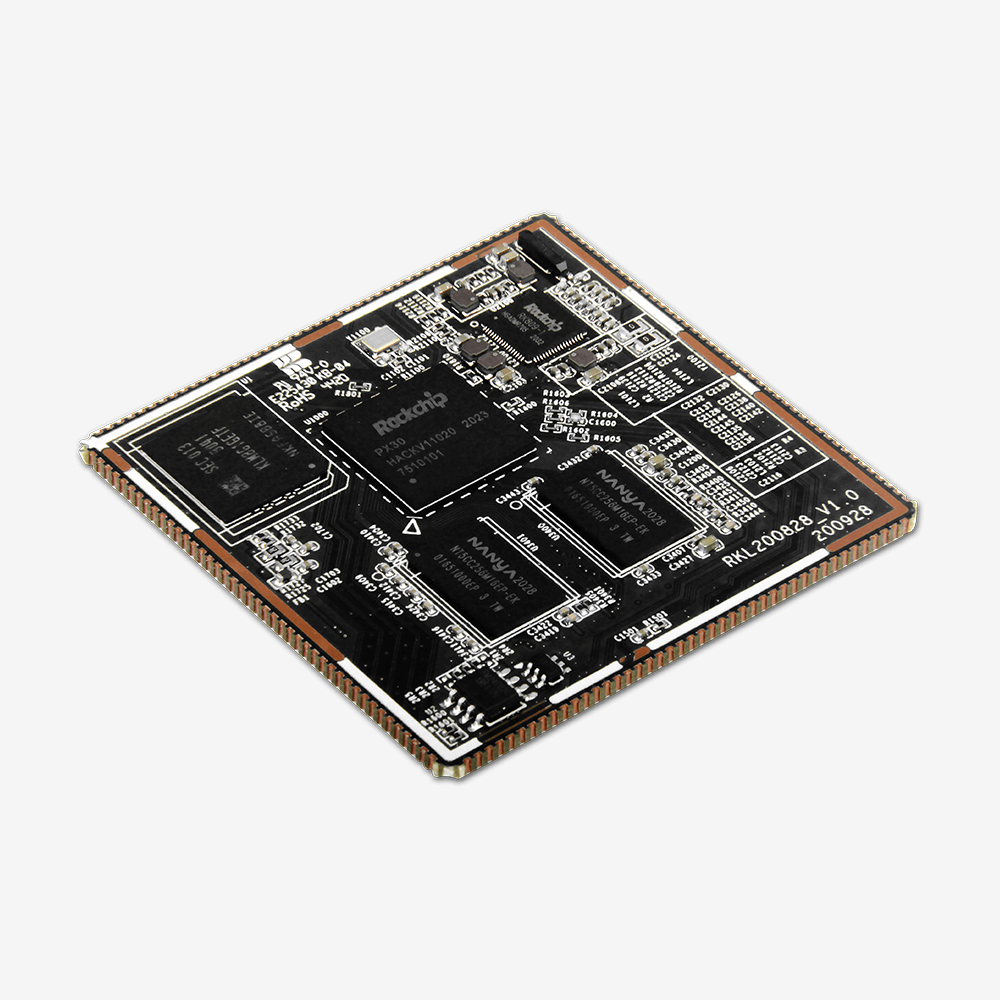

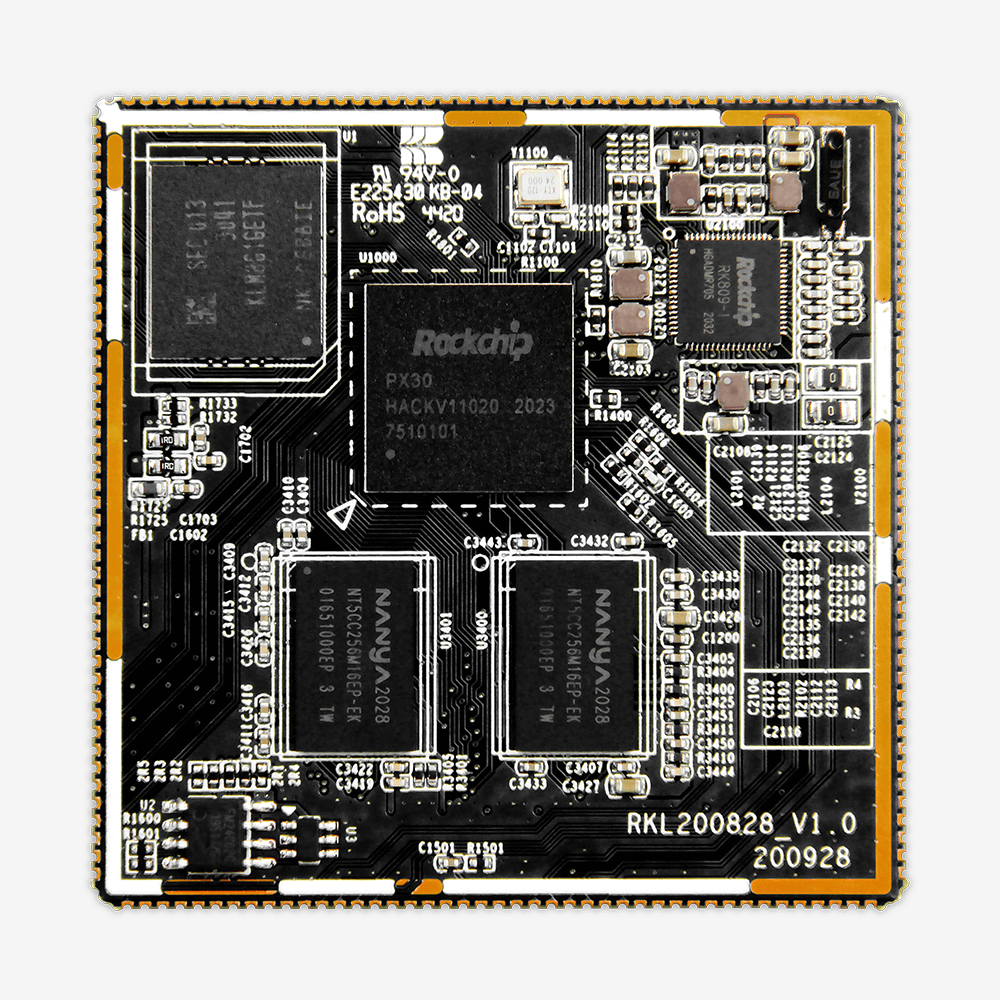

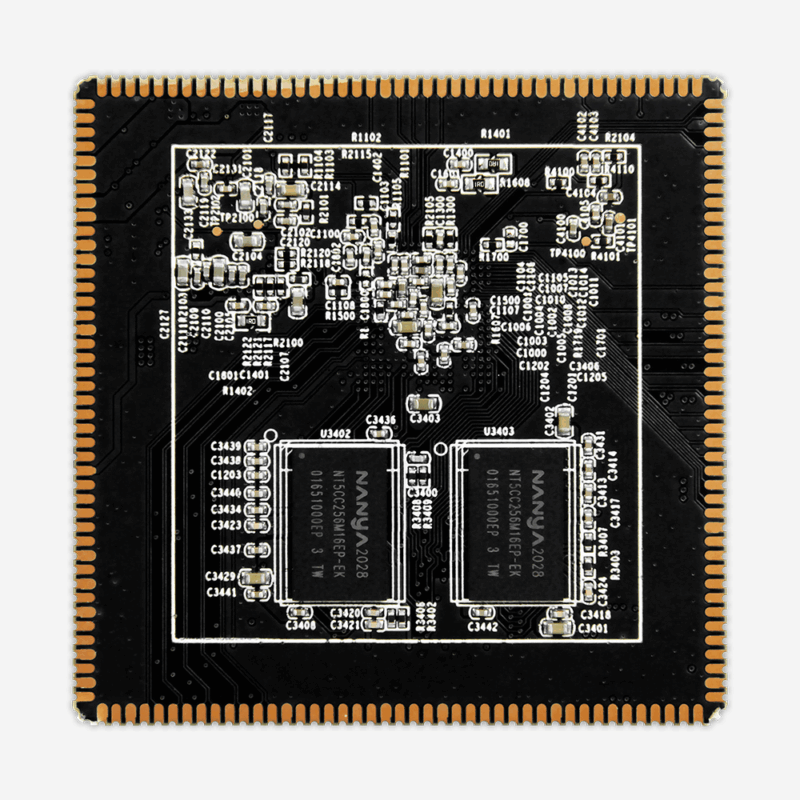

Industrial-grade Low-power System on Module for Displays
Geniatech SOM-PX30 uses a PX30 industrial-grade 64-bit low-power processor with a main frequency up to 1.3Hz. It has a quad-core Cortex-A35 and dual-core Mali-G31 GPU, as well as rich display expansion interfaces, which can be used with a variety of displays to better meet the display requirements of the market in different environments.
| Model | SOM-PX30 |
| Display | Support MIPI, LVDS, RGB Port |
| USB | 2*HOST2.0 |
| Other Interface | SDIO output channel, AC97/IIS Port, Serial ports,WDT Port |
| Extension Interface | 8 * PWM output 4 * IIC output 2 * SPI output 3 *ADC output 1 *CSI input 1*RTC |
| Connectivity | WiFi802.11a/b/g/n/ac + Bluetooth4.0 1 x Gigabit Ethernet (RJ45 10/100/1000M) |
| Dimension | 55mm*55mm |
| System | Android/Linux |
| Processor | Rockchip PX30 |
| CPU | Quad-core ARM Cortex-A35 1.3GHz |
| GPU | Mali-G31 MP2 GPU，Support OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 |
| Memory | 1GB DDR3（2G optional） 8G EMMC（16G/32G optional） |
| Power | DC 5V/1A |
