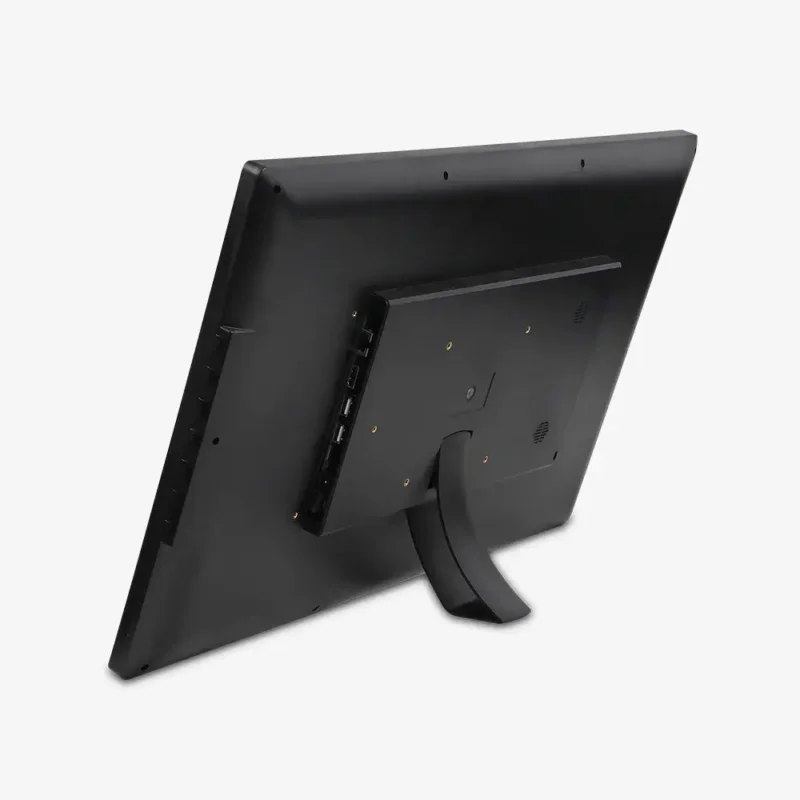

21.5″ Industrial Fanless Panel PC

$499.00

Available on backorder

SKU: TPC2150 Category: Tag:


Description

Our industrial android tablet has a fanless design with a rugged housing, and is designed to combine all the advantages of the Android platform with the advantages of an Industrial Panel PC.

Geniatech fanless industrial panel PC is a cheaper alternative to traditional Windows panel PCs, but have more features. Geniatech TPC2150 has a 21.5″ touchscreen, offers 10-point capacitance. This Android Panel PC rus on an ARM Cortex processor, supports Android 11, Built-in WiFi, BT & GbE, USB, HDMI, etc.

Key Highlights

  • 21.5″ P-Cap Touch Screen Panel
  • ARM Cortex A55 Processor
  • Onboard LPDDR4 2GB Memory
  • Onboard 16GB eMMC Flash
  • Fanless Design
RK3568 panel PC

A variety of interfaces

Equipped with various interfaces such as GbE ports, USB3.0, USB2.0, HDMI2.0 output/ HDMI input, RF, 4G/5G optional.  it can be easily connected to different industrial equipment to meet a variety of industrial needs.

Multi-operating System

Support Android 10 and Linux system

Capacitive Screen

10 points touch, short response time

Dual-display Support

Along with the HDMI 2.0a port, this enables dual simultaneous displays.

Built in Tuner Optional

MDM Optional

Can remotely wake up, restart, standby, etc.

HDMI IN Optional

This Can Realize The PIP Function

Specification

Primary Components
Processor Quad-core ARM Cortex-A55
Memory Onboard 2GB LPDDR4 (1G/4G/8G Optional)
Onboard 16GB eMMC Flash (8G/32G/64G Optional)
Operation System Android 11
Debian 10 optional
Display
Screen Size 21.5"
Screen type Touchscreen – 10 Point Capacitive
LCD Panel Type LCD
LCD Panel resolution 1920*1080
Ratio 16:9
Luminance 300cd/m2
Viewing Angle 89°
External I/O ports & Connectivity
USB 1x USB 3.0, 1x USB 2.0
HDMI HDMI2.0 output (HDMI input optional)
Network options • 1*Gigabit Ethernet (10/100/1000M)
• 2T2R WiFi (802.11 a/b/g/n/ac (ax optionl) )
• Bluetooth 5.0
• Mobile Network Optional (3G/4G/5G )
Speakers 2x 3W
Camera Front 2M / 5M pixels optional
Built in TV Tuner Support a variety of digital TV reception : DVB-T2/T/C,ATSC1.0/3.0, ISDB-T/DTMB optional
Enclosure
Housing type Closed Plastic Frame
Mounting VESA Mount
Usage 24/7
Cooling Solution Passive – Fanless with Heatsink
PowerAdapter AC 100-240V
12V/2A
