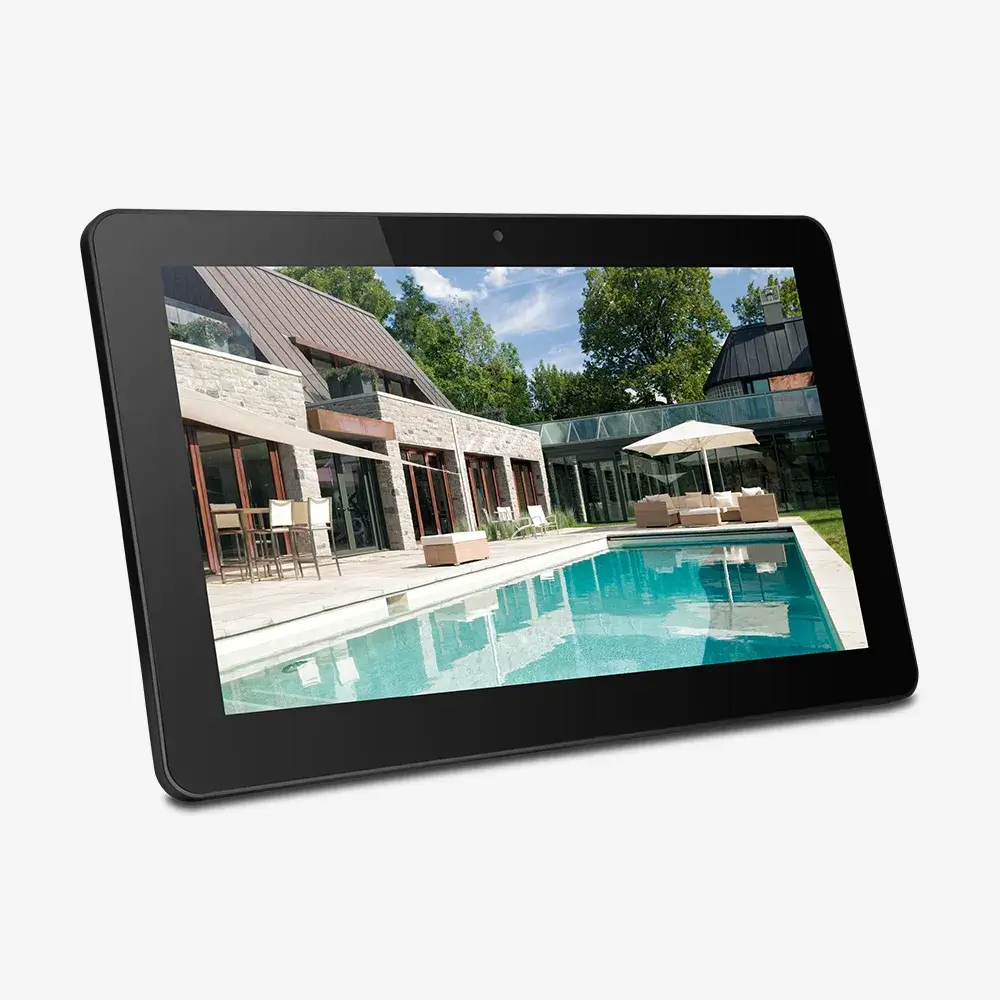

AIO Industrial PC Touch Screen (RK3288)


Panel :
+ -1 more
Please select an option :
+ -2 more
Clear selection
SKU: TPC1560K Category: Tag:

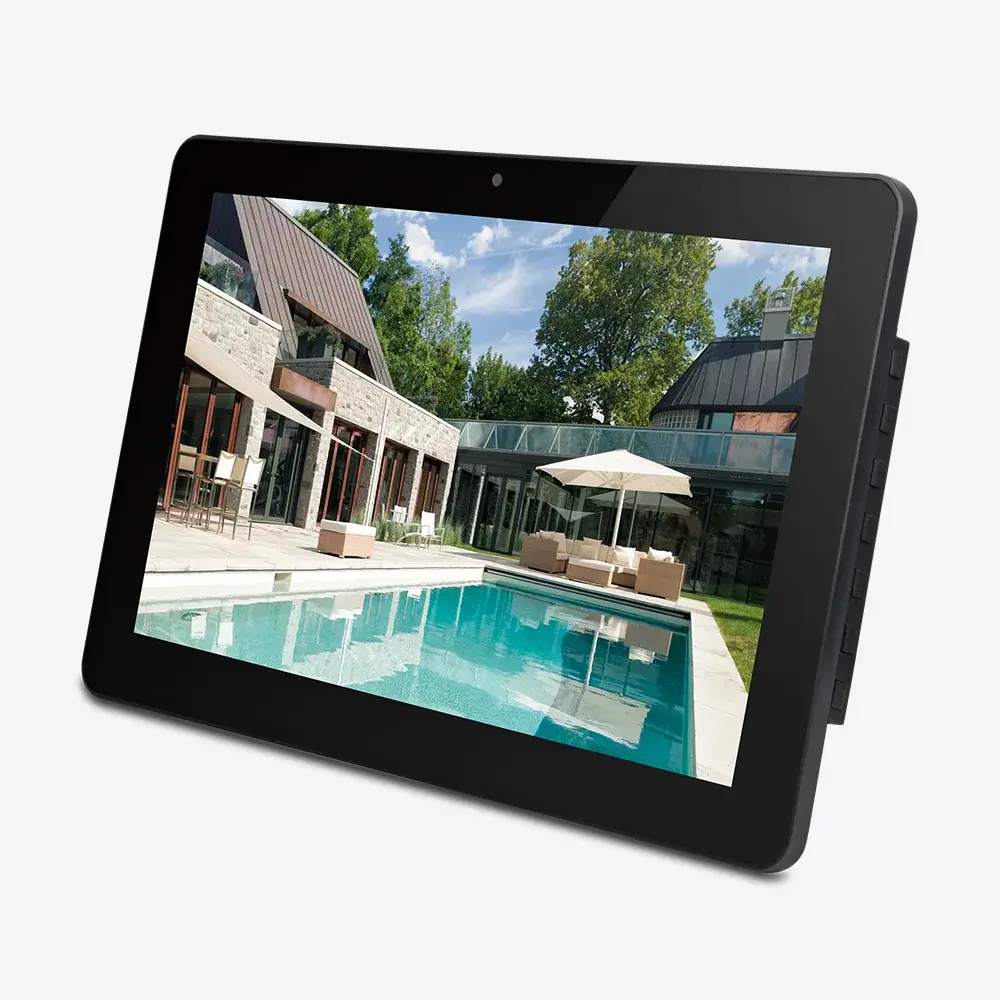

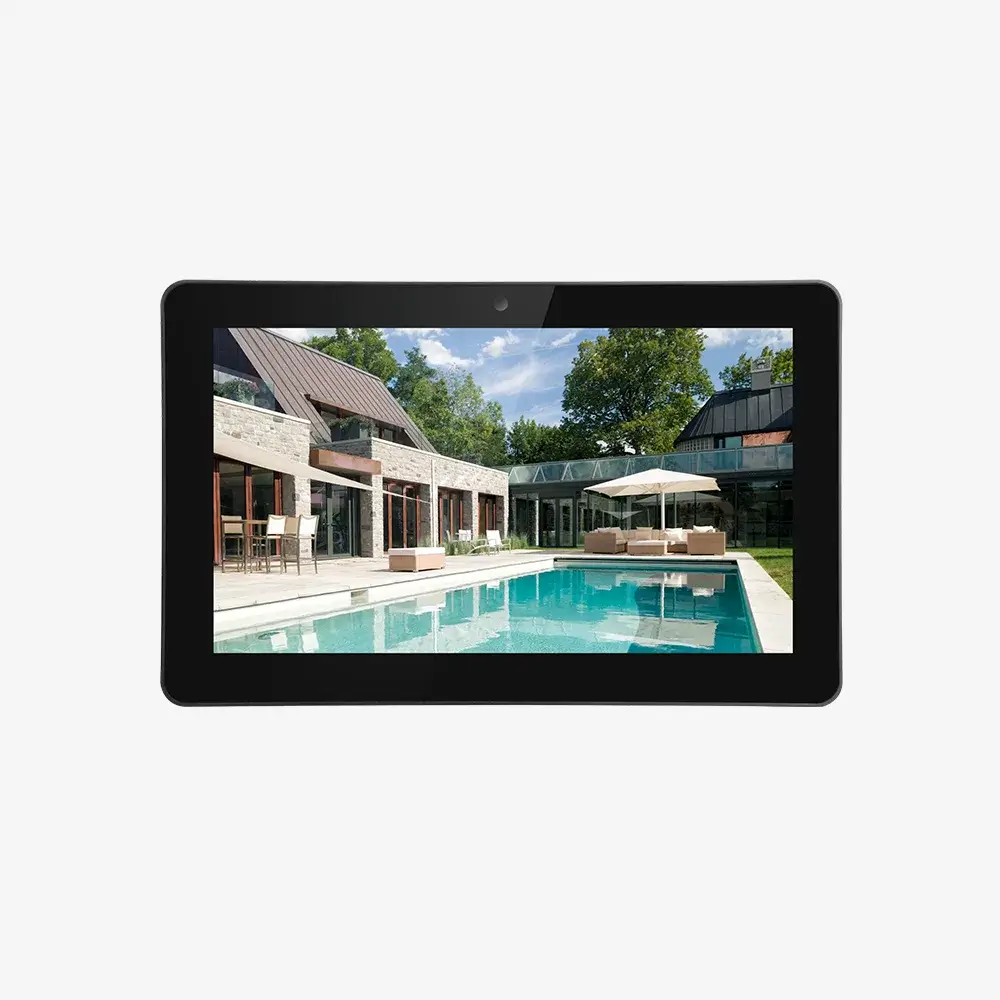

Geniatech touch panel PC series features the powerful Rochchip RK3288 Quad core Cortex A17 processor, brings it all together with an integrated 10points projected capacitive touch screen, 2.0MP camera, Android 7.1 (Nougat) 2GB RAM, 16GB eMMc flash,Built-in WiFi & LAN, USB, SD/TF card external storage, and optional Power-over-Ethernet (POE) – all in a compact responsive all-in-one (AiO) computer. Designed for retail, interactive communication


Screen sizeAvailable in size of 10.1″, 15.6″, 18.5″, 21.5″, 23.6″, 27″, 32″
Screen typeTouchscreen – 10 Point Capacitive
LCD Panel TypeLCD
LCD Panel resolution1920*1080

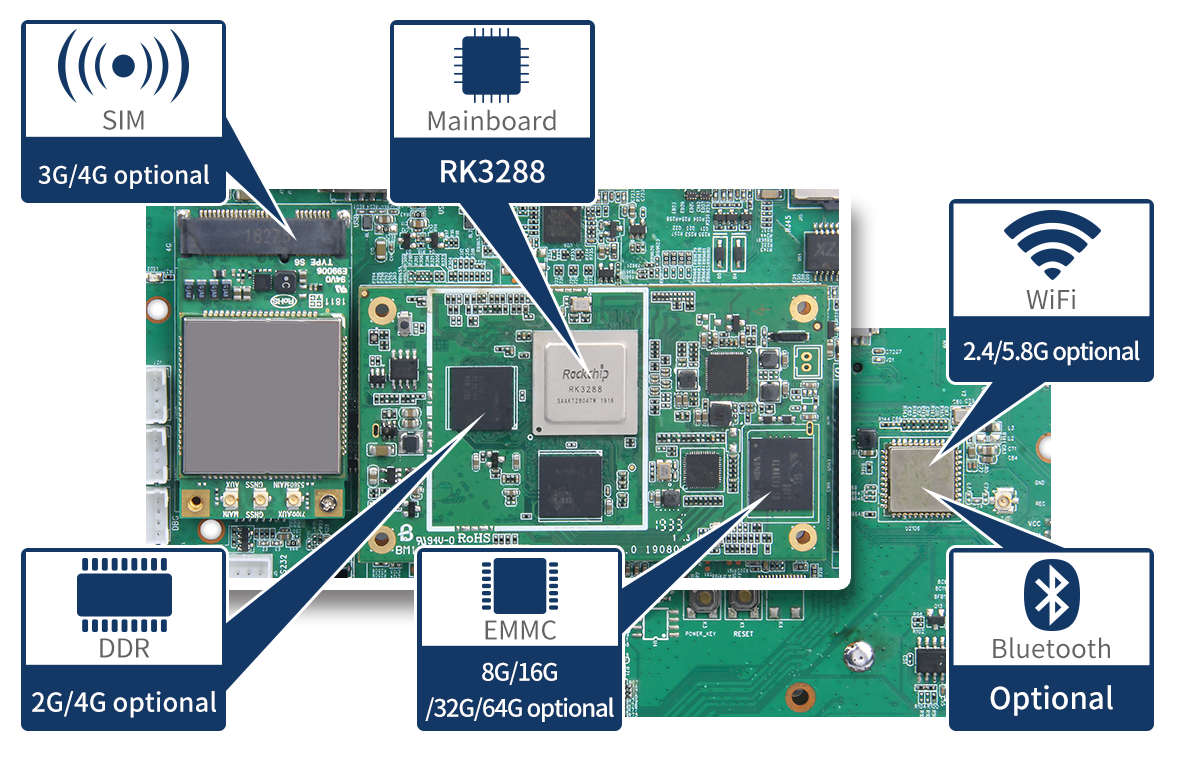

CHIPSETRockchip RK3288, Cortex A17r4, Quad Core
Operation SystemAndroid 7.1 / Linux optional

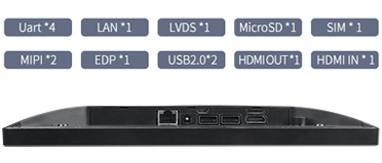

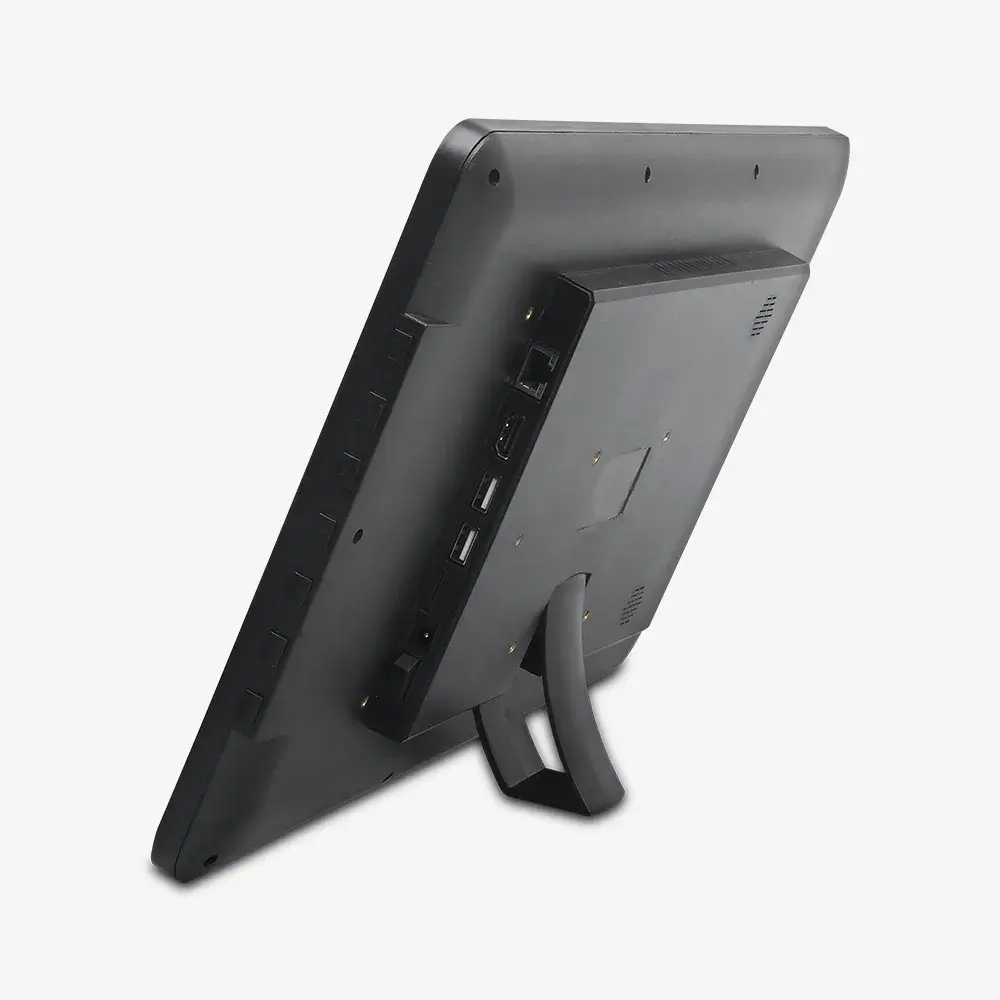

Interface – Connection portalsHDMI out, USB 2.0, Micro SD card, Power Input
Resolution Internal Video Player1920*1080
Housing typeClosed Plastic Frame
Network options• LAN/WLAN (10/100M)
• WiFi (802.11n, 802.11 ac 2T2R WiFi)
• Bluetooth 4.1
• Mobile Network (3G-4G) – Optional
TunerATSC, DVB-T2/T Optional
Speakers2x 3W
POE802.3at (Optional)
CameraFront 2M/5M pixels Optiona)
Memory2GB DDR3 (4G Optional)
16GB (8G/32G/64G Optional)
Power AdapterAC 100-240V

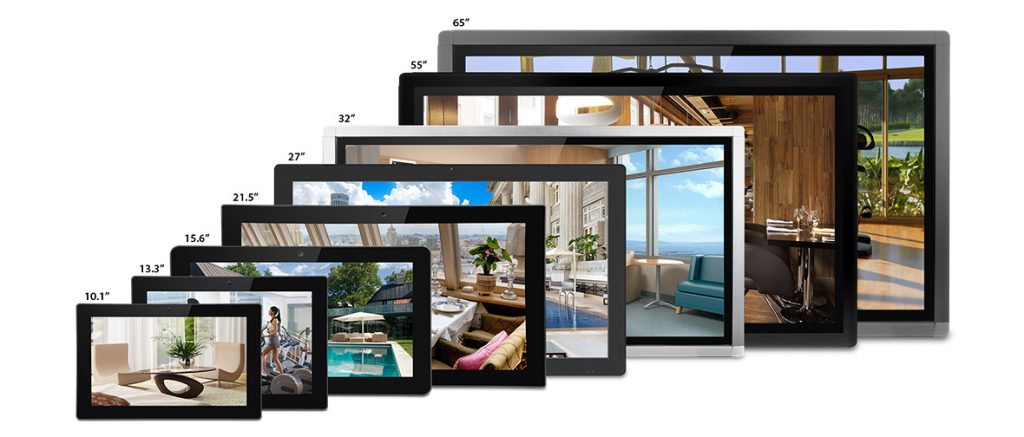

• Display screen from 10.1 to 65 inches

• Resolution from 1280*600 to 4K screen

• 10 points touch, short response time

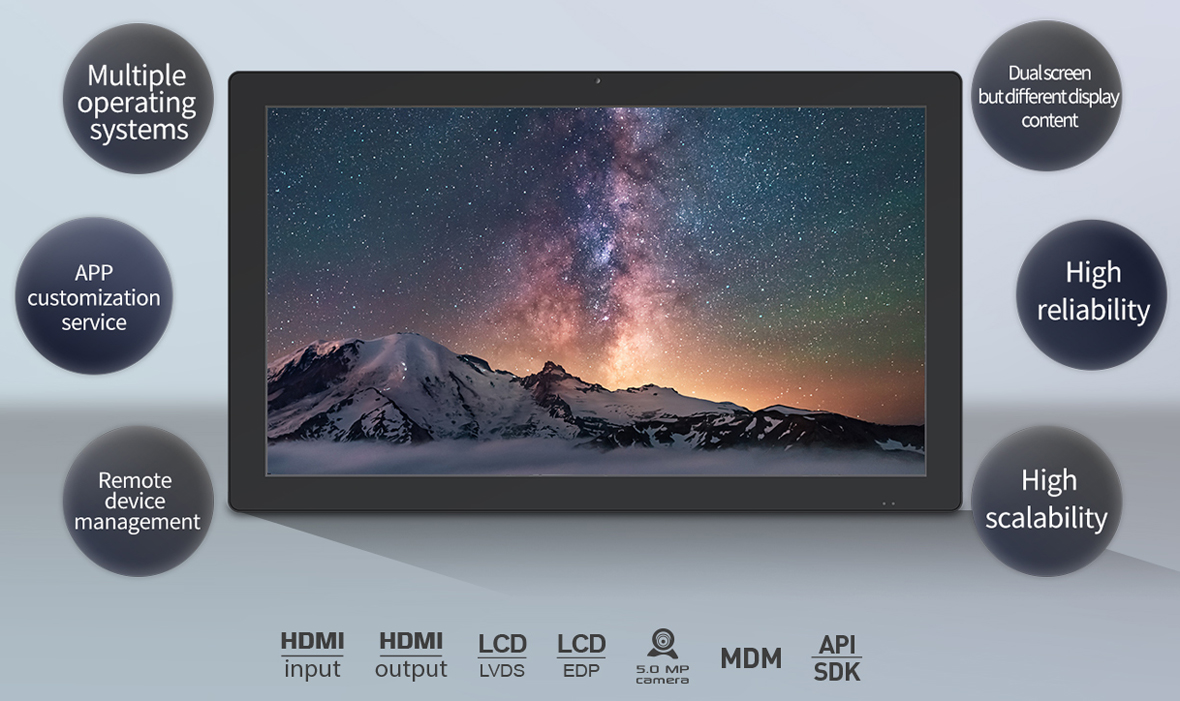

• High scalability: Rich external extension interfaces, like LCD and standard interfaces

• High reliability: Industrial mainboard design, 7*24H continuous work without any exception

• SDK and OS customization service

• Remote device management, can perform remote wakeup, restart, standby and so on

• Support Android 7.1 and Linux system
